MRMS201A-001
description
2-2 Murata part number
Magnetic Sensor MRMS201A-001

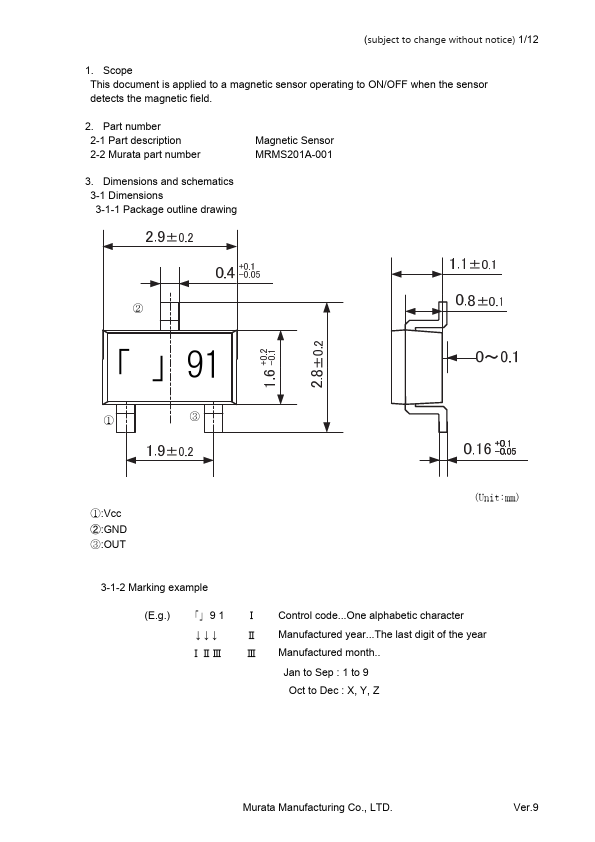

3. Dimensions and schematics 3-1 Dimensions 3-1-1 Package outline drawing
②
「 」91
①
③
①:Vcc ②:GND ③:OUT
(Unit:mm)
3-1-2 Marking example
(E.g.) 「」9 1 Ⅰ Control code...One alphabetic character
↓↓↓
Ⅱ Manufactured year...The last digit of the year
ⅠⅡⅢ Ⅲ Manufactured month..
Jan to Sep : 1 to 9
Oct to Dec : X, Y, Z
Murata Manufacturing Co., LTD.
Ver.9

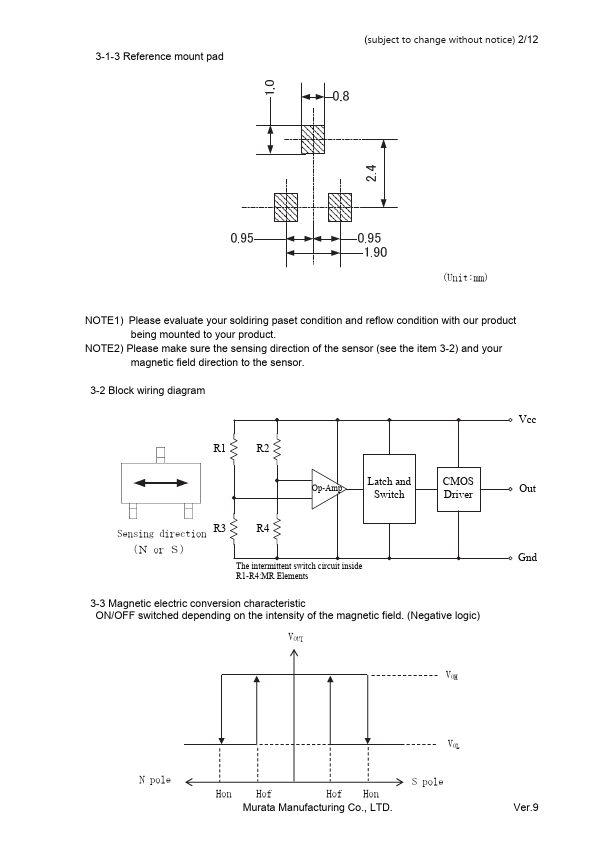

3-1-3 Reference mount pad
(subject to change without notice) 2/12
(Unit:mm)
NOTE1) Please evaluate your soldiring paset condition and reflow condition with our product being mounted to your product.
NOTE2) Please make sure the sensing direction of the sensor (see the item 3-2) and your magnetic field direction to the sensor.
3-2 Block wiring diagram
Vcc
R1
R2
Op-Amp
Latch and Switch
CMOS Driver
Out
Sensing direction R3
R4
（Ｎ or Ｓ）
The intermittent switch circuit inside R1-R4:MR Elements
Gnd

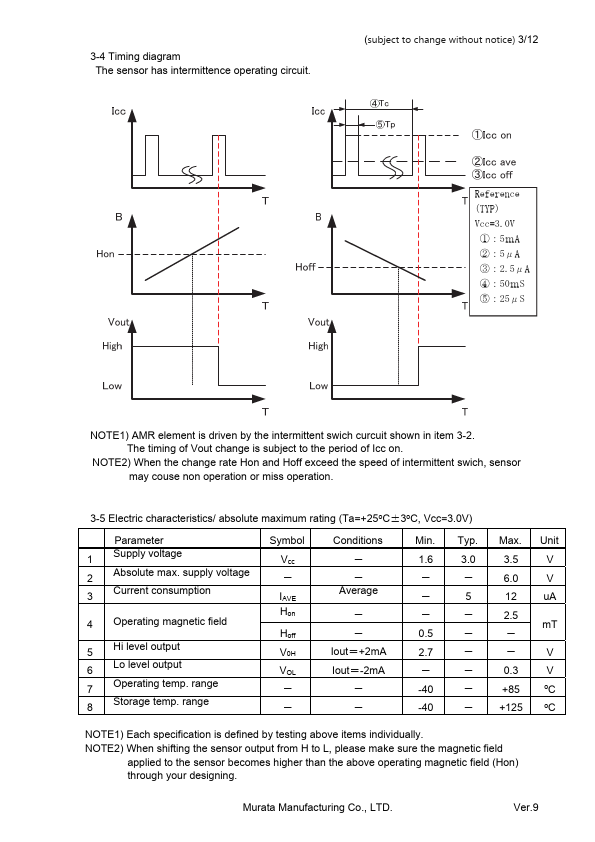

3-3 Magnetic electric conversion characteristic ON/OFF...
