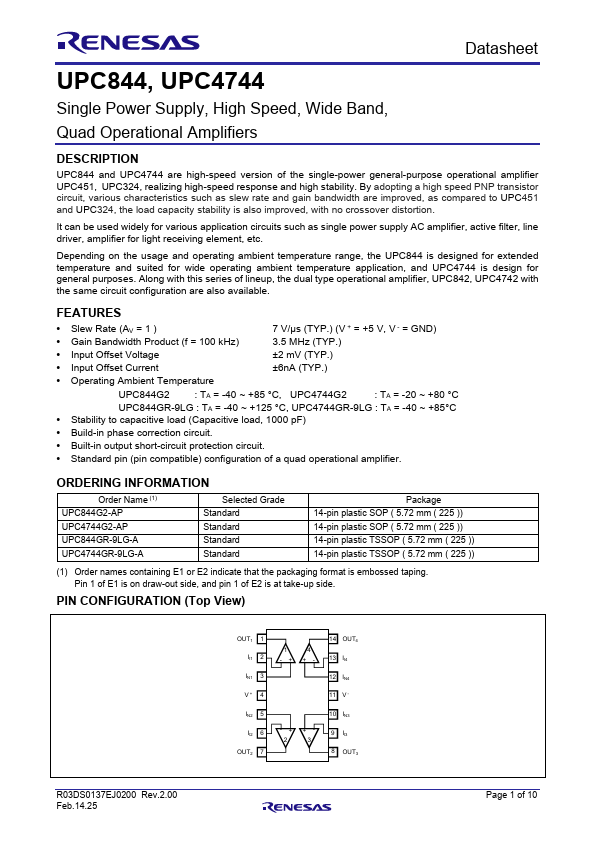

C844G Description
UPC844 and UPC4744 are high-speed version of the single-power general-purpose operational amplifier UPC451, UPC324, realizing high-speed response and high stability. By adopting a high speed PNP transistor circuit, various characteristics such as slew rate and gain bandwidth are improved, as pared to UPC451 and UPC324, the load capacity stability is also improved, with no crossover distortion. It can be used widely...
C844G Key Features
- Slew Rate (AV = 1 )
- = GND)
- Gain Bandwidth Product (f = 100 kHz)
- Input Offset Voltage
- Input Offset Current
- Operating Ambient Temperature
- Stability to capacitive load (Capacitive load, 1000 pF)
- Build-in phase correction circuit
- Built-in output short-circuit protection circuit
- Standard pin (pin patible) configuration of a quad operational amplifier
