NCA1021S - LIN transceiver

General Description

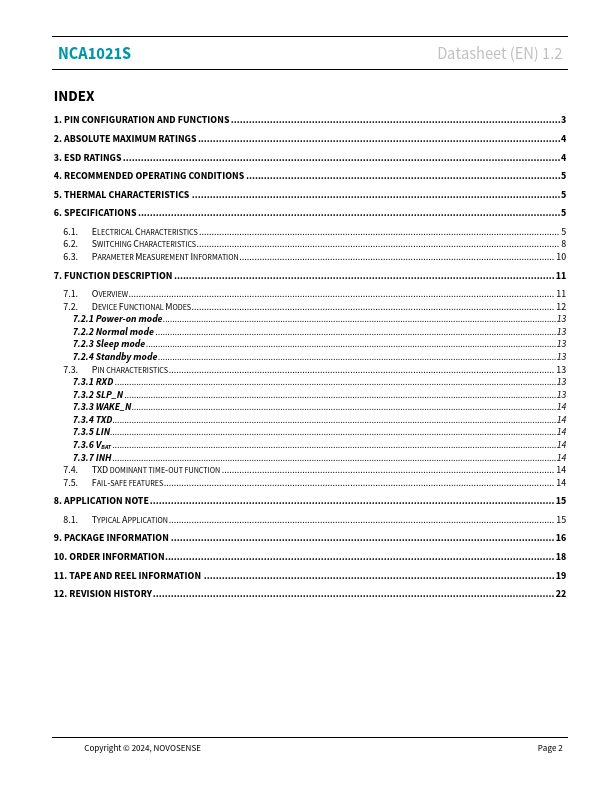

7.1.

OVERVIEW 11 7.2.

7.2.1 Power-on mode13 7.2.2 Normal mode 13 7.2.3 Sleep mode 13 7.2.4 Standby mode 13 7.3.

Key Features

  • Over temperature protection.
  • Date rate: up to 20 kbps.
  • Operation temperature range: -40 ℃~125 ℃.
  • RoHS compliance.
  • Available packages: SOP8 DFN8.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NCA1206NPO100J100TRPF Multilayer Ceramic Chip Capacitors NIC
NCA1206NPO100J16TRPF Multilayer Ceramic Chip Capacitors NIC
NCA1206NPO100J25TRPF Multilayer Ceramic Chip Capacitors NIC
NCA1206NPO100J50TRPF Multilayer Ceramic Chip Capacitors NIC
NCA1206NPO101J100TRPF Multilayer Ceramic Chip Capacitors NIC

Other Datasheets by NOVOSENSE

Part Number Description
NCA1042 High-speed CAN Transceiver
NCA1042B High-speed CAN Transceiver
NCA1042B-Q1 High-speed CAN Transceiver
NCA1051 High-speed CAN Transceiver
NCA1051A High-speed CAN Transceiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

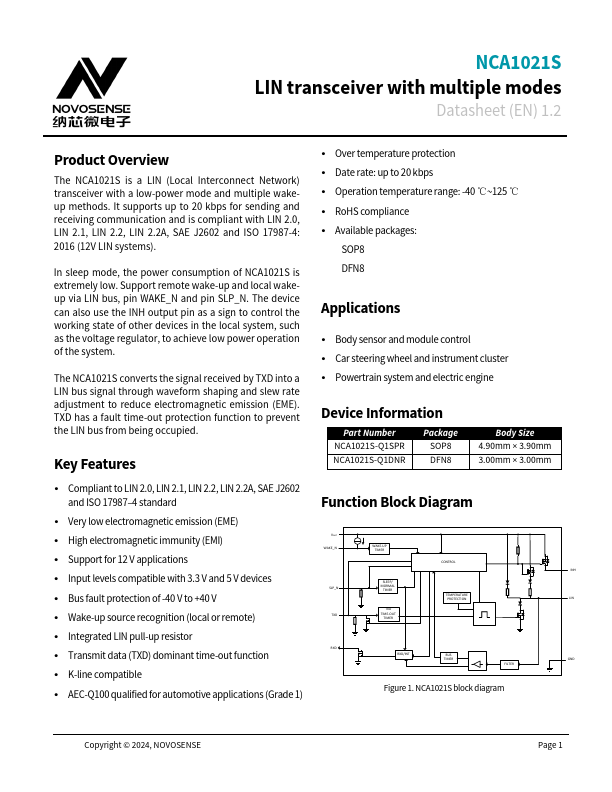

NCA1021S LIN transceiver with multiple modes Datasheet (EN) 1.1 Product Overview The NCA1021S is a LIN (Local Interconnect Network) transceiver with a low-power mode and multiple wakeup methods. It supports up to 20 kbps for sending and receiving communication and is compliant with LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, SAE J2602 and ISO 17987-4: 2016 (12V LIN systems). In sleep mode, the power consumption of NCA1021S is extremely low. Support remote wake-up and local wakeup via LIN bus, pin WAKE_N and pin SLP_N. The device can also use the INH output pin as a sign to control the working state of other devices in the local system, such as the voltage regulator, to achieve low power operation of the system.
