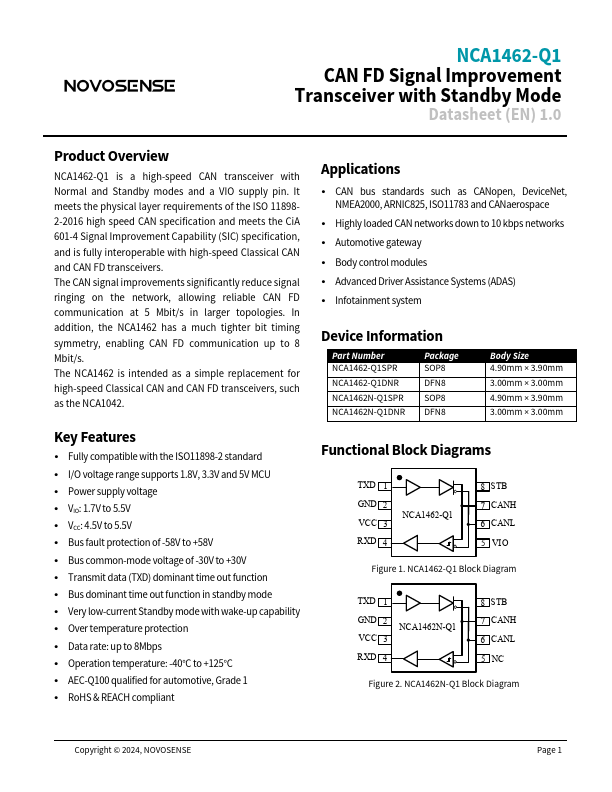

NCA1462-Q1 CAN FD Signal Improvement Transceiver with Standby Mode Datasheet (EN) 1.0 Product Overview NCA1462-Q1 is a high-speed CAN transceiver with Normal and Standby modes and a VIO supply pin. It meets the physical layer requirements of the ISO 118982-2016 high speed CAN specification and meets the Ci A 601-4 Signal Improvement Capability (SIC) specification, and is fully interoperable with high-speed Classical CAN and CAN FD transceivers. The CAN signal improvements significantly reduce signal ringing on the network, allowing reliable CAN FD munication at 5 Mbit/s in larger topologies. In addition, the NCA1462 has a much tighter bit timing symmetry, enabling CAN FD munication up to 8 Mbit/s. The NCA1462 is intended as a simple replacement for high-speed Classical CAN and CAN FD transceivers, such as the NCA1042. Key Features - Fully patible with the ISO11898-2 standard - I/O voltage range supports 1.8V, 3.3V and 5V MCU - Power supply voltage - VIO: 1.7V to 5.5V - VCC: 4.5V to 5.5V - Bus fault protection of -58V to +58V - Bus mon-mode voltage of -30V to +30V - Transmit data (TXD) dominant time out function - Bus dominant time out function in standby mode - Very low-current Standby mode with wake-up capability - Over temperature protection - Data rate: up to 8Mbps - Operation temperature: -40°C to +125°C - AEC-Q100 qualified for automotive, Grade 1 - Ro HS & REACH pliant Applications - CAN bus standards such as CANopen, Device Net, NMEA2000, ARNIC825, ISO11783 and CANaerospace - Highly loaded CAN networks down to 10 kbps networks - Automotive gateway - Body control modules - Advanced Driver Assistance Systems (ADAS) - Infotainment system Device...
