NSAD1248 Description

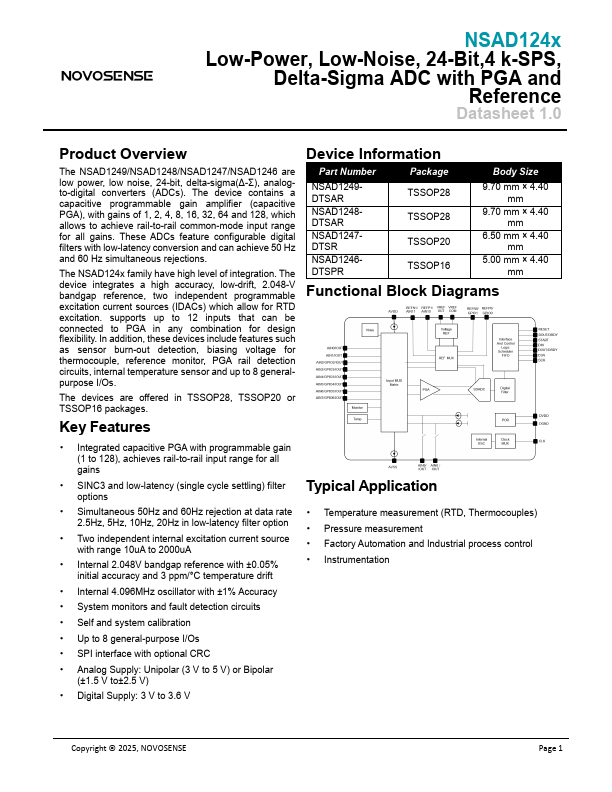

NSAD124x Low-Power, Low-Noise, 24-Bit,4 k-SPS, Delta-Sigma ADC with PGA and Reference Datasheet 1.0 Product Overview The NSAD1249/NSAD1248/NSAD1247/NSAD1246 are low power, low noise, 24-bit, delta-sigma(Δ-Σ), analogto-digital converters (ADCs). The device contains a capacitive programmable gain amplifier (capacitive PGA), with gains of 1, 2, 4, 8, 16, 32, 64 and 128, which allows to achieve rail-to-rail mon-mode...
NSAD1248 Key Features
- Integrated capacitive PGA with programmable gain (1 to 128), achieves rail-to-rail input range for all gains
- SINC3 and low-latency (single cycle settling) filter
