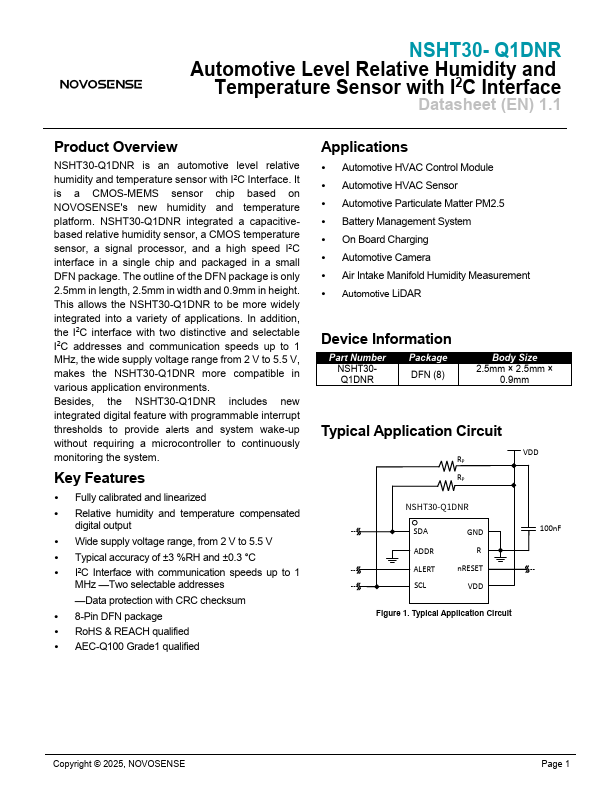

NSHT30-Q1DNR
NSHT30-Q1DNR is Automotive Level Relative Humidity and Temperature Sensor manufactured by NOVOSENSE.
feature with programmable interrupt thresholds to provide alerts and system wake-up without requiring a microcontroller to continuously monitoring the system.
Key Features
- Fully calibrated and linearized
- Relative humidity and temperature pensated digital output
- Wide supply voltage range, from 2 V to 5.5 V
- Typical accuracy of ±3 %RH and ±0.3 °C
- I2C Interface with munication speeds up to 1
MHz
- Two selectable addresses
- Data protection with CRC checksum
- 8-Pin DFN package
- Ro HS & REACH qualified
- AEC-Q100 Grade1 qualified
Applications
- Automotive HVAC Control Module
- Automotive HVAC Sensor
- Automotive Particulate Matter PM2.5
- Battery Management System
- On Board Charging
- Automotive Camera
- Air Intake Manifold Humidity Measurement
- Automotive Li DAR
Device Information
Part Number NSHT30Q1DNR
Package DFN (8)
Body Size 2.5mm × 2.5mm ×
0.9mm
Typical Application Circuit
VDD RP RP
NNSSHHTT3300-Q1DNR...
