NSI1200C - High Reliability Reinforced Isolated Amplifier

Description

7.1.

INSULATION AND SAFETY RELATED SPECIFICATIONS10 7.2.

INSULATION CHARACTERISTICS 11 7.3.

Features

  • Up to 5000Vrms Insulation voltage.
  • ±250mV linear Input Voltage Range.
  • Fixed Gain: 8.0.
  • Low Offset Error and Drift: ±0.5mV (Max), ±5μV/°C (Max).
  • Low Gain Error and Drift: ±0.3% (Max), ±30ppm/°C (Max).
  • Low Nonlinearity and Drift: ±0.05% (Max), ±1ppm/°C (Typ).
  • SNR: 72dB (Typ, BW=100kHz).
  • Wide bandwidth: 220kHz (Typ).
  • High CMTI: 125kV/μs (Typ).
  • System-Level Diagnostic Features:.
  • VDD1 monitoring.
  • Input common-mode overvoltage detection Copy.

📥 Download Datasheet

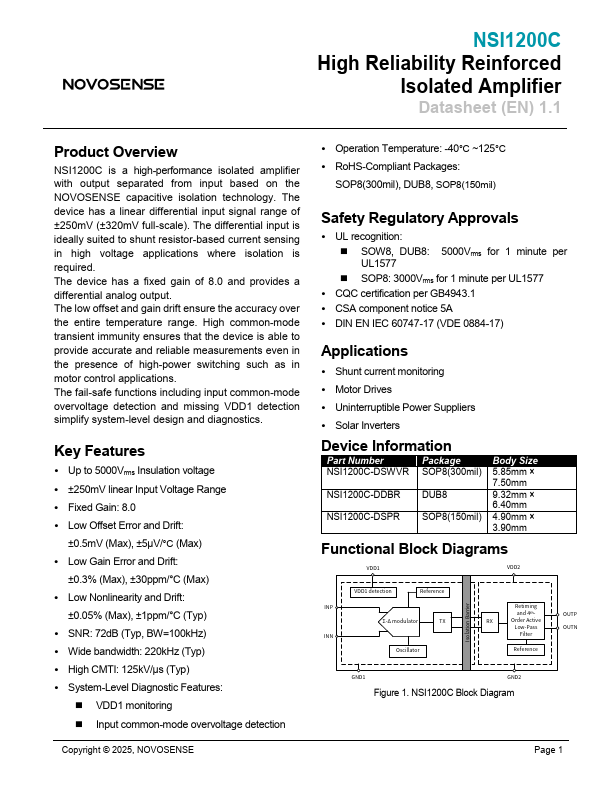

Datasheet preview – NSI1200C

Datasheet Details

Part number NSI1200C
Manufacturer NOVOSENSE
File Size 1.61 MB
Description High Reliability Reinforced Isolated Amplifier
Datasheet download datasheet NSI1200C Datasheet

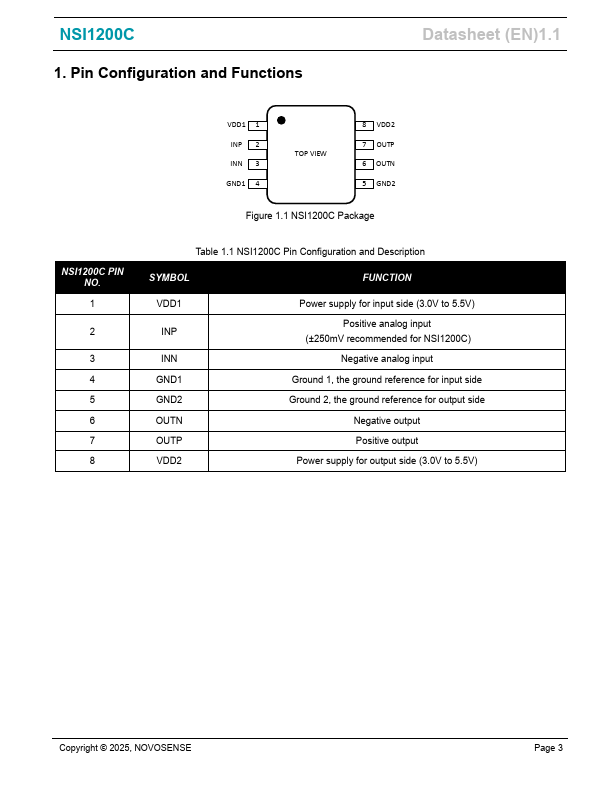

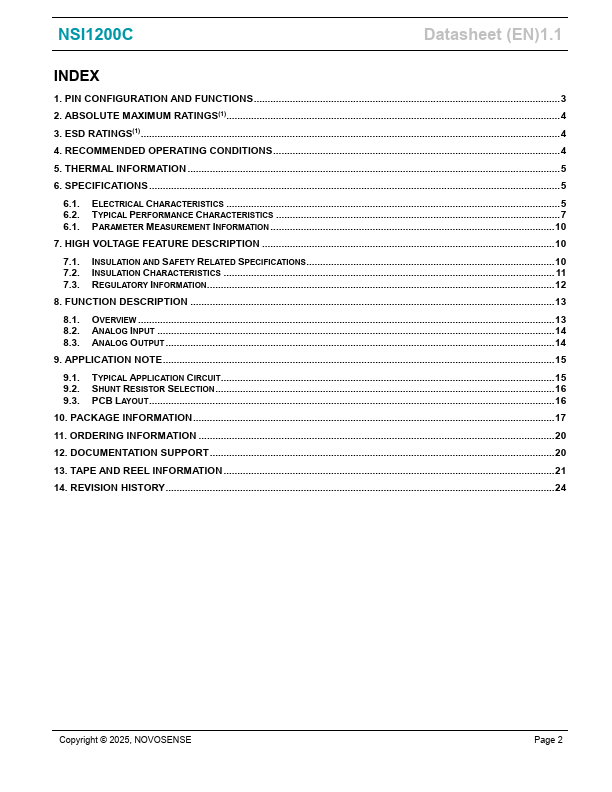

Additional preview pages of the NSI1200C datasheet.

📁 Similar Datasheet

  • NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)
  • NSI3000 - CMOS Image Sensor (Newsight Imaging)
  • NSI45015WT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020JZ - Adjustable Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45020T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025AZ - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025T1G - Constant Current Regulator & LED Driver (ON Semiconductor)
  • NSI45025ZT1G - Constant Current Regulator & LED Driver (ON Semiconductor)
Other Datasheets by NOVOSENSE
  • NSi1200 - High Reliability Reinforced Isolated Amplifier
  • NSI1042 - Isolated CAN Transceiver
  • NSI1042-Q1 - Isolated CAN Transceiver
  • NSI1042C - Isolated CAN Transceiver
  • NSi1050 - Isolated CAN Transceiver
  • NSI1052 - Isolated CAN Transceiver
  • NSi1300 - Isolated Amplifier
  • NSi1300-Q1 - High Reliability Reinforced Isolated Amplifier

Full PDF Text Transcription

Click to expand full text
NSI1200C High Reliability Reinforced Isolated Amplifier Datasheet (EN) 1.1 Product Overview NSI1200C is a high-performance isolated amplifier with output separated from input based on the NOVOSENSE capacitive isolation technology. The device has a linear differential input signal range of ±250mV (±320mV full-scale). The differential input is ideally suited to shunt resistor-based current sensing in high voltage applications where isolation is required. The device has a fixed gain of 8.0 and provides a differential analog output. The low offset and gain drift ensure the accuracy over the entire temperature range.
