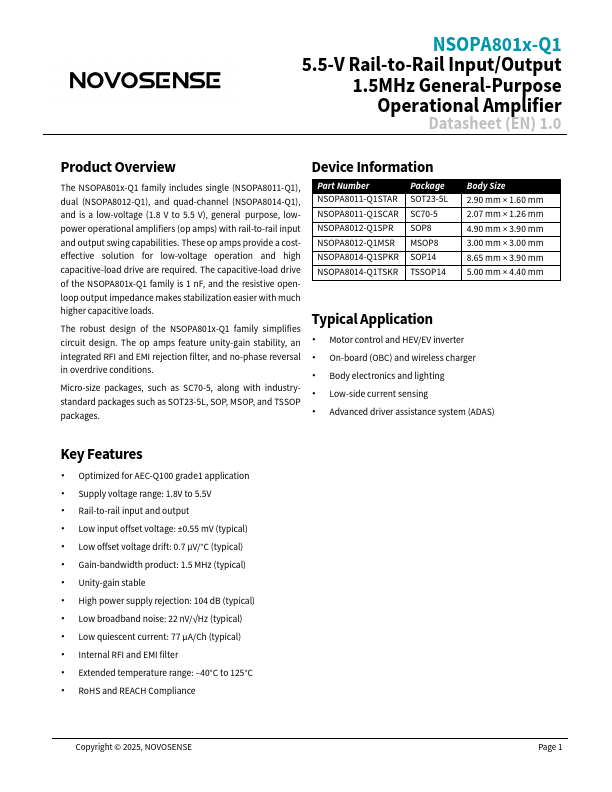

NSOPA801x-Q1 5.5-V Rail-to-Rail Input/Output
1.5MHz General-Purpose Operational Amplifier
Datasheet (EN) 1.0
Product Overview
Device Information
The NSOPA801x-Q1 family includes single (NSOPA8011-Q1), dual (NSOPA8012-Q1), and quad-channel (NSOPA8014-Q1), and is a low-voltage (1.8 V to 5.5 V), general purpose, lowpower operational amplifiers (op amps) with rail-to-rail input and output swing capabilities. These op amps provide a costeffective solution for low-voltage operation and high capacitive-load drive are required. The capacitive-load drive of the NSOPA801x-Q1 family is 1 nF, and the resistive openloop output impedance makes stabilization easier with much higher capacitive loads.
The robust design of the NSOPA801x-Q1 family simplifies circuit design.
NSOPA8011-Q1 Datasheet
