NSOPA8012-Q1 Datasheet 5.5-V Rail-to-Rail Input/Output 1.5MHz General-Purpose Operational Amplifier

Manufacturer: NOVOSENSE

Download the NSOPA8012-Q1 datasheet PDF. This datasheet also includes the NSOPA8011-Q1 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NSOPA8011-Q1-NOVOSENSE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NSOPA8012-Q1
Manufacturer NOVOSENSE
File Size 4.67 MB
Description 5.5-V Rail-to-Rail Input/Output 1.5MHz General-Purpose Operational Amplifier
Download NSOPA8012-Q1 Download (PDF)

Overview

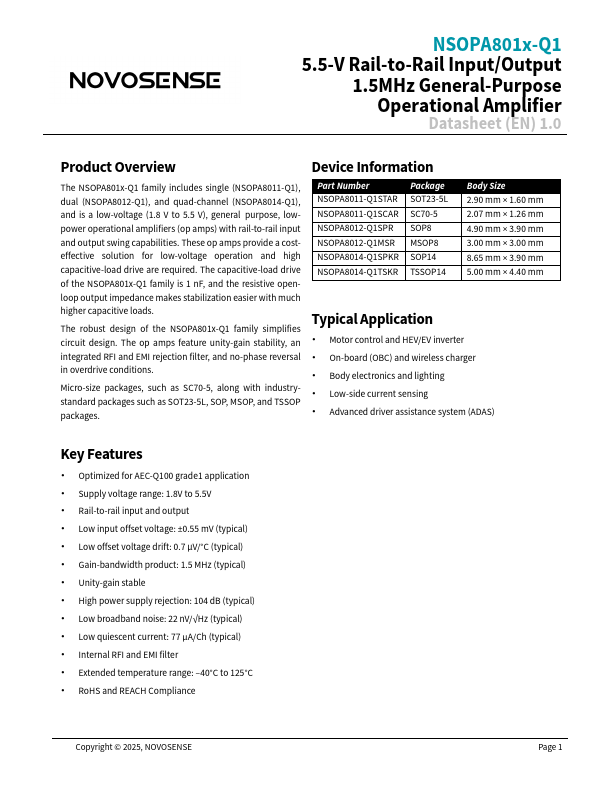

NSOPA801x-Q1 5.5-V Rail-to-Rail Input/Output 1.5MHz General-Purpose Operational Amplifier Datasheet (EN) 1.0 Product Overview Device Information The NSOPA801x-Q1 family includes single (NSOPA8011-Q1), dual (NSOPA8012-Q1), and quad-channel (NSOPA8014-Q1), and is a low-voltage (1.8 V to 5.5 V), general purpose, lowpower operational amplifiers (op amps) with rail-to-rail input and output swing capabilities.

These op amps provide a costeffective solution for low-voltage operation and high capacitive-load drive are required.

The capacitive-load drive of the NSOPA801x-Q1 family is 1 nF, and the resistive openloop output impedance makes stabilization easier with much higher capacitive loads.

Key Features

  • Optimized for AEC-Q100 grade1.
