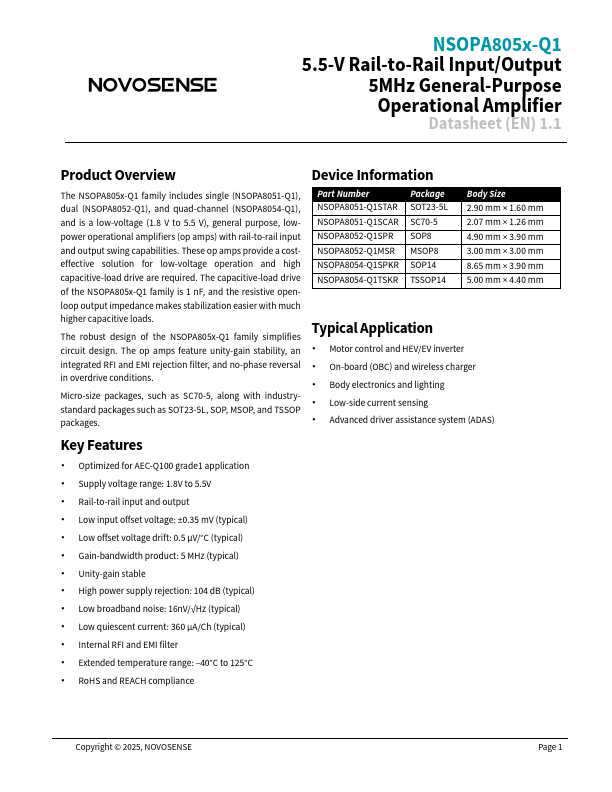

NSOPA8052-Q1 Description
These op amps provide a costeffective solution for low-voltage operation and high capacitive-load drive are required. The capacitive-load drive of the NSOPA805x-Q1 family is 1 nF, and the resistive openloop output impedance makes stabilization easier with much higher capacitive loads. The robust design of the NSOPA805x-Q1 family simplifies circuit design.
NSOPA8052-Q1 Key Features
- Optimized for AEC-Q100 grade1 application
- Supply voltage range: 1.8V to 5.5V
- Rail-to-rail input and output
- Low input offset voltage: ±0.35 mV (typical)
- Low offset voltage drift: 0.5 μV/°C (typical)
- Gain-bandwidth product: 5 MHz (typical)
- Unity-gain stable
- High power supply rejection: 104 dB (typical)
- Low broadband noise: 16nV/√Hz (typical)
- Low quiescent current: 360 µA/Ch (typical)
