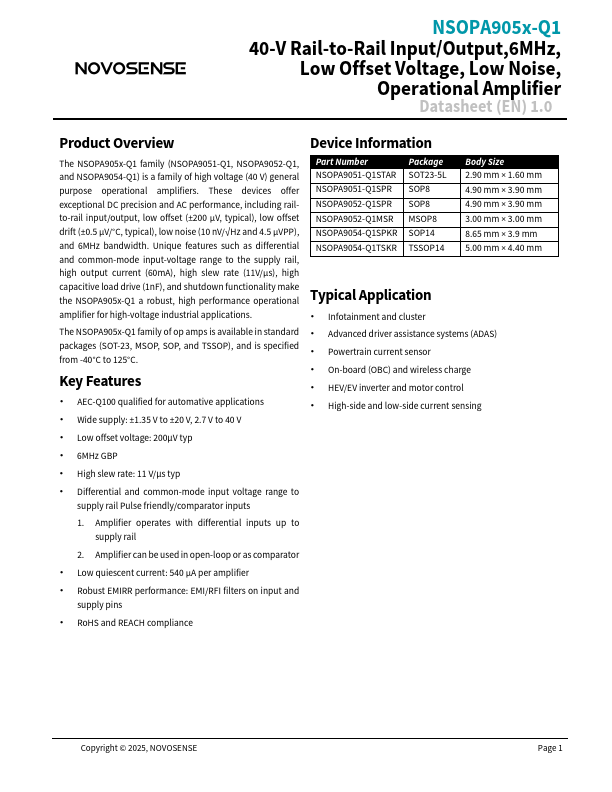

NSOPA905x-Q1 40-V Rail-to-Rail Input/Output,6MHz, Low Offset Voltage, Low Noise, Operational Amplifier Datasheet (EN) 1.0 Product Overview Device Information The NSOPA905x-Q1 family (NSOPA9051-Q1, NSOPA9052-Q1, and NSOPA9054-Q1) is a family of high voltage (40 V) general purpose operational amplifiers. These devices offer exceptional DC precision and AC performance, including railto-rail input/output, low offset (±200 µV, typical), low offset drift (±0.5 µV/°C, typical), low noise (10 n V/√Hz and 4.5 µVPP), and 6MHz bandwidth. Unique Features such as differential and mon-mode input-voltage range to the supply rail, high output current (60m A), high slew rate (11V/µs), high capacitive load drive (1n F), and shutdown functionality make the NSOPA905x-Q1 a robust, high performance operational amplifier for high-voltage industrial applications. The NSOPA905x-Q1 family of op amps is available in standard packages (SOT-23, MSOP, SOP, and TSSOP), and is specified from -40°C to 125°C. Key Features - AEC-Q100 qualified for automative applications - Wide supply: ±1.35 V to ±20 V, 2.7 V to 40 V Part Number NSOPA9051-Q1STAR NSOPA9051-Q1SPR NSOPA9052-Q1SPR NSOPA9052-Q1MSR NSOPA9054-Q1SPKR NSOPA9054-Q1TSKR Package SOT23-5L SOP8 SOP8 MSOP8 SOP14 TSSOP14 Body Size 2.90 mm × 1.60 mm 4.90 mm × 3.90 mm 4.90 mm × 3.90 mm 3.00 mm × 3.00 mm 8.65 mm × 3.9 mm 5.00 mm × 4.40 mm Typical Application - Infotainment and cluster - Advanced driver assistance systems (ADAS) - Powertrain current sensor - On-board (OBC) and wireless charge - HEV/EV inverter and motor control - High-side and low-side current sensing - Low offset voltage: 200μV typ - 6MHz GBP - High slew rate: 11 V/μs typ - Differential and mon-mode input voltage range to supply rail Pulse friendly/parator inputs 1. Amplifier operates with differential inputs up to supply rail 2. Amplifier can be used in open-loop or as parator - Low quiescent current: 540 µA per amplifier - Robust EMIRR performance: EMI/RFI...
