NSi8230 - Triple-Channel Digital Isolators

General Description

6.1.

INSULATION AND SAFETY RELATED SPECIFICATIONS13 6.2.

INSULATION CHARACTERISTICS 14 6.3.

Key Features

  • Up to 8000Vrms Insulation voltage.
  • Date rate: DC to 150Mbps.
  • Power supply voltage: 2.5V to 5.5V.
  • High CMTI: 250kV/us.
  • Chip level ESD: HBM: ±8kV.
  • Robust Electromagnetic Compatibility (EMC).
  • System-Level ESD, EFT, and Surge Immunity.
  • Low Emissions.
  • Default output high level or low level option.
  • Low power consumption: 1.5mA/ch (1 Mbps).
  • Low propagation delay:.

📥 Download Datasheet

Datasheet Details

Part number NSi8230
Manufacturer NOVOSENSE
File Size 2.69 MB
Description Triple-Channel Digital Isolators
Datasheet download datasheet NSi8230 Datasheet

Full PDF Text Transcription for NSi8230 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for NSi8230. For precise diagrams, and layout, please refer to the original PDF.

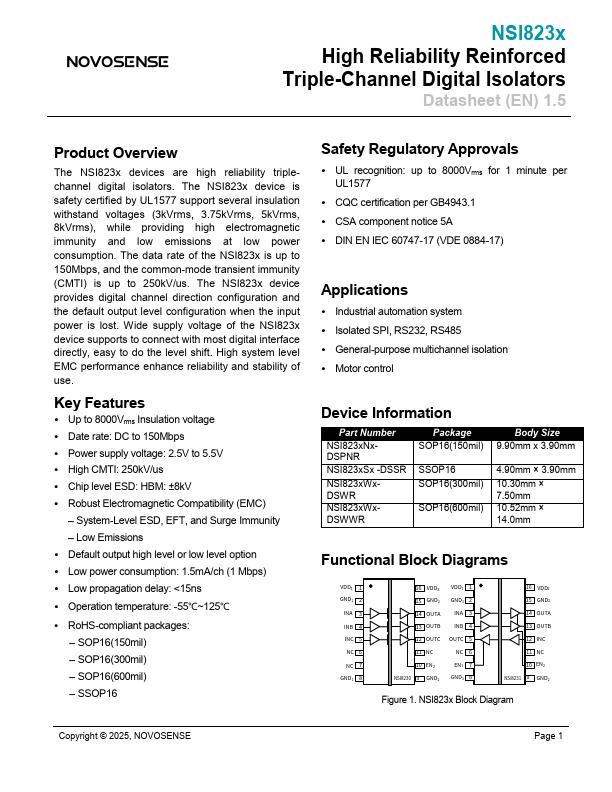

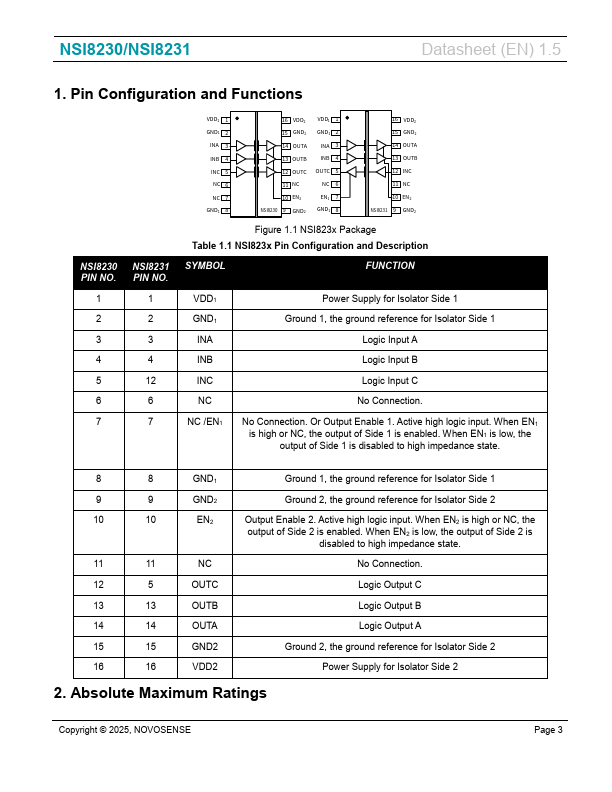

NSI823x High Reliability Reinforced Triple-Channel Digital Isolators Datasheet (EN) 1.5 Product Overview The NSI823x devices are high reliability triplechannel digital is...

View more extracted text
view The NSI823x devices are high reliability triplechannel digital isolators. The NSI823x device is safety certified by UL1577 support several insulation withstand voltages (3kVrms, 3.75kVrms, 5kVrms, 8kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSI823x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 250kV/us. The NSI823x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSI823x device supports to connect with most digi
