NSi8241-Q1 - High Reliability Reinforced Quad-Channel Digital Isolators

Download the NSi8241-Q1 datasheet PDF. This datasheet also covers the NSi8240-Q1 variant, as both devices belong to the same high reliability reinforced quad-channel digital isolators family and are provided as variant models within a single manufacturer datasheet.

General Description

6.1.

INSULATION AND SAFETY RELATED SPECIFICATIONS 13 6.2.

SAFETY-LIMITING VALUES 14 6.3.

Key Features

  • Up to 5000Vrms Insulation voltage.
  • Date rate: DC to 150Mbps.
  • Power supply voltage: 2.5V to 5.5V.
  • AEC-Q100 Grade 1 available for all devices.
  • High CMTI: 250kV/us.
  • Chip level ESD: HBM: ±8kV.
  • Robust Electromagnetic Compatibility (EMC).
  • System-Level ESD, EFT, and Surge Immunity.
  • Low Emissions.
  • Default output high level or low-level option.
  • Low power consumption: 1.5mA/ch (1 Mbps).
  • Low propagation delay:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NSi8240-Q1-NOVOSENSE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NSi8241-Q1
Manufacturer NOVOSENSE
File Size 2.64 MB
Description High Reliability Reinforced Quad-Channel Digital Isolators
Datasheet download datasheet NSi8241-Q1 Datasheet

Full PDF Text Transcription for NSi8241-Q1 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for NSi8241-Q1. For precise diagrams, and layout, please refer to the original PDF.

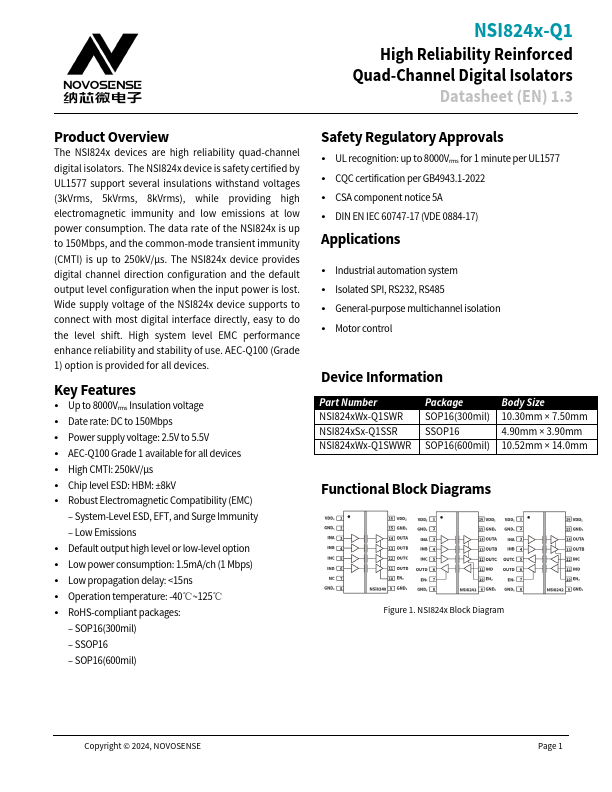

NSi824x-Q1 High Reliability Reinforced Quad-Channel Digital Isolators Datasheet (EN) 1.2 Product Overview The NSi824x devices are high reliability quad-channel digital is...

View more extracted text
rview The NSi824x devices are high reliability quad-channel digital isolators. The NSi824x device is safety certified by UL1577 support several insulations withstand voltages (3kVrms, 5kVrms, 8kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi824x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 250kV/us. The NSi824x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSi824x device supports to connect with most digital interf
