Download the NSi8262-Q1 datasheet PDF.
This datasheet also covers the NSi8260-Q1 variant, as both devices belong to the same six-channel digital isolators family and are provided as variant models within a single manufacturer datasheet.
General Description
7.
8.
Key Features
Up to 5000Vrms Insulation voltage.
Date rate: DC to 150Mbps.
Power supply voltage: 2.5V to 5.5V.
AEC-Q100 Grade 1 available for all devices.
High CMTI: 200kV/us.
Chip level ESD: HBM: ±8kV.
High system level EMC performance:
Enhanced system level ESD, EFT, Surge immunity.
Full PDF Text Transcription for NSi8262-Q1 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
NSi8262-Q1. For precise diagrams, and layout, please refer to the original PDF.

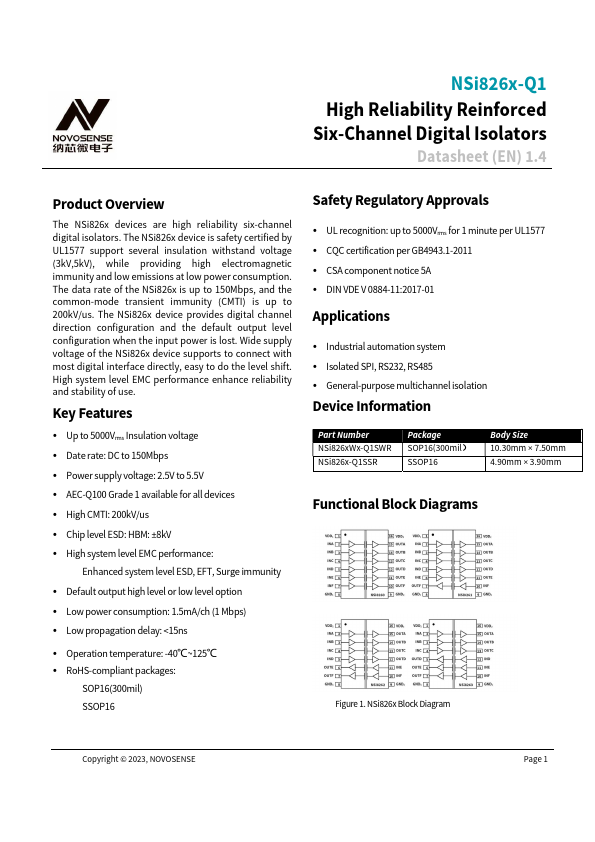

NSi826x-Q1 High Reliability Reinforced Six-Channel Digital Isolators Datasheet (EN) 1.3 Product Overview The NSi826x devices are high reliability six-channel digital isol...
View more extracted text
view The NSi826x devices are high reliability six-channel digital isolators. The NSi826x device is safety certified by UL1577 support several insulation withstand voltage (3kV,5kV), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi826x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 200kV/us. The NSi826x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSi826x device supports to connect with most digital interface directly, easy
NSi8262-Q1 Datasheet
