NXP Semiconductors 74HCT14

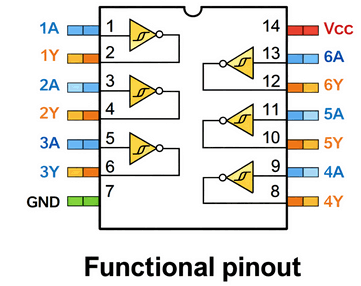

74HCT14 is a hex inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow interfacing to TTL logic levels.| Part No. | 74HCT14 |
|---|---|
| Datasheet | 74HCT14 Download |
| Manufacturer |  NXP Semiconductors |
| Description | Hex inverting Schmitt trigger |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● Complies with JEDEC standard no. 7A● Low-power dissipation
● ESD protection:
● HBM JESD22-A114F exceeds 2000 V
● MM JESD22-A115-A exceeds 200 V
● Multiple package options
● Specified from 40 C to +85 C and from 40 C to +125 C 3.
APPLICATIONS
● Wave and pulse shapers● Astable multivibrators
● Monostable multivibrators NXP Semiconductors 74HC14; 74HCT14 Hex inverting Schmitt trigger 4. Ordering information Table 1. Ordering information Type number Package Temperature range 74HC14D 40 C to +125 C 74HCT14D 74HC14DB 40 C to +125 C 74HCT14DB 74HC14PW 40 C to +125 C 74HCT14PW 74HC14BQ 40 C to +125 C 74HCT14BQ Name SO14 SSOP14 TSSOP14 DHVQFN14
DESCRIPTION
plastic small outline package; 14 leads; body width 3.9 mm Version SOT108-1 plastic shrink small outline package; 14 leads; body SOT337-1 width 5.3 mm plastic thin shrink small outline package; 14 leads; body width 4.4 mm SOT402-1 plastic dual in-line compatible thermal enhanced very SOT762-1 thin quad flat package; no leads; 14 terminals; body 2.5 3 0.85 mm 5.
