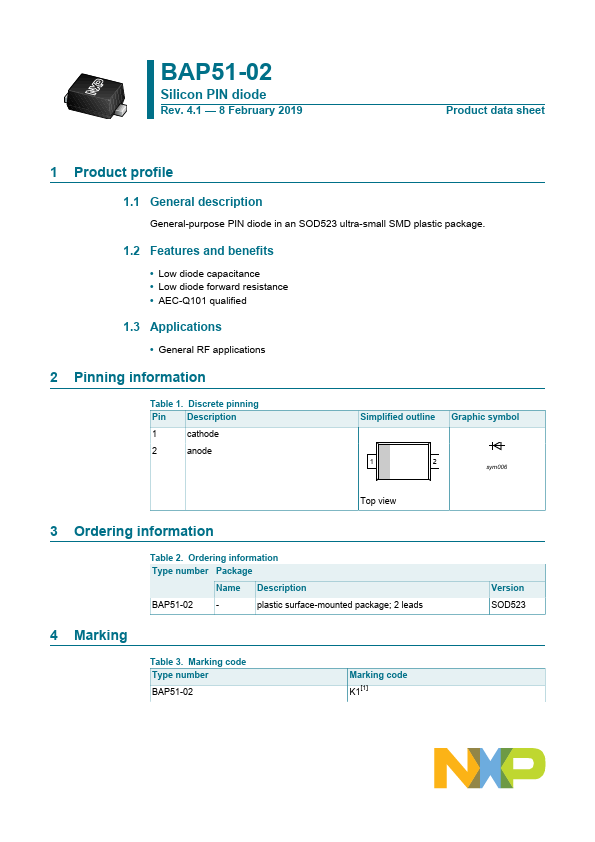

BAP51-02
description
General-purpose PIN diode in an SOD523 ultra-small SMD plastic package.
1.2 Features and benefits
- Low diode capacitance
- Low diode forward resistance
- AEC-Q101 qualified
1.3 Applications
- General RF applications
2 Pinning information
Table 1. Discrete pinning Pin Description
1 cathode
2 anode
Simplified outline Graphic symbol
2 sym006
Top view
3 Ordering information
Table 2. Ordering information Type number Package
Name Description
- plastic surface-mounted package; 2 leads
4 Marking
Table 3. Marking code Type number
Marking code K1[1]
Version SOD523
NXP Semiconductors
Silicon PIN diode
[1] The marking bar indicates the cathode (see simplified outline graphic in Table 1).

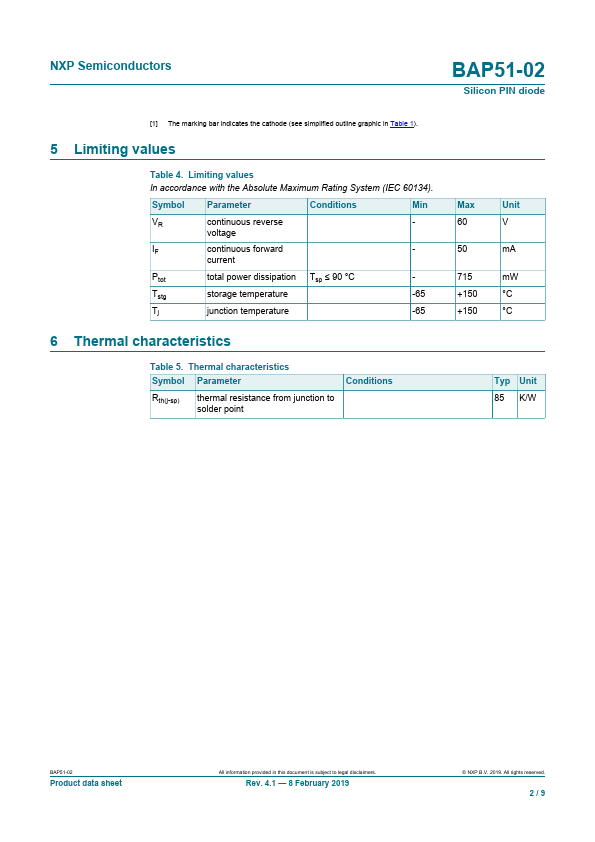

5 Limiting values
Table 4. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter
Conditions
Min
VR continuous reverse
- voltage
IF continuous forward
- current

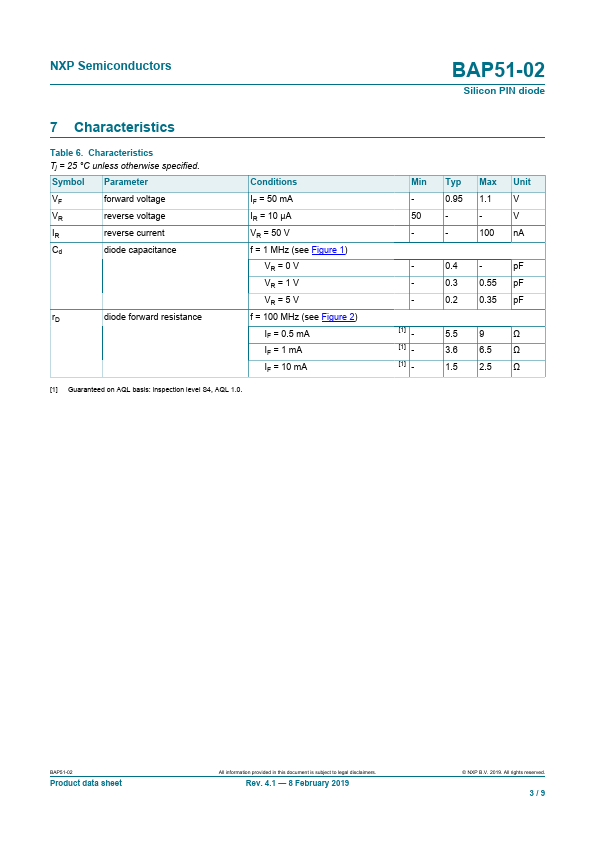

Ptot total power...
