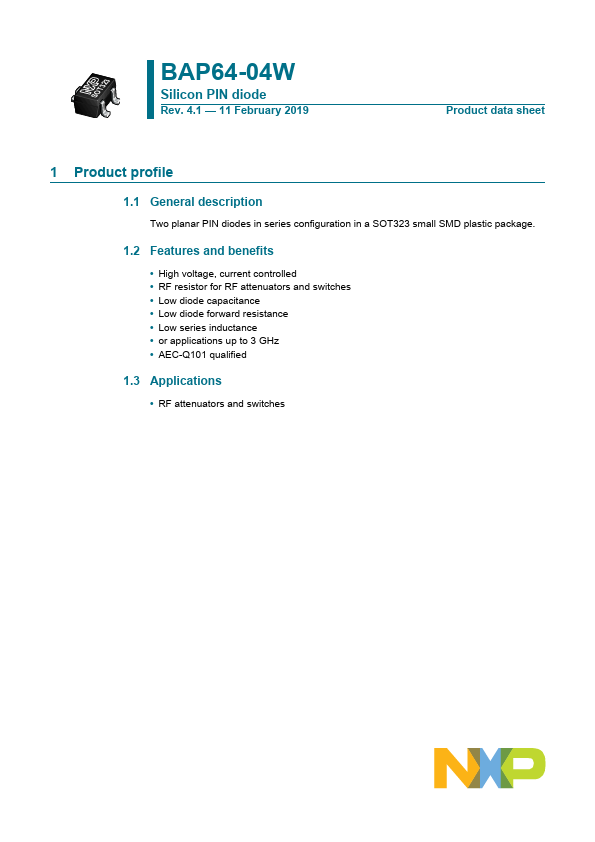

BAP64-04W - Silicon PIN diode

General Description

Two planar PIN diodes in series configuration in a SOT323 small plastic SMD package.

Fig.1 Simplified outline (SOT323) and symbol.

Key Features

  • High voltage, current controlled.
  • RF resistor for RF attenuators and switches.
  • Low diode capacitance.
  • Low diode forward resistance.
  • Low series inductance.
  • For.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAP64-04WS Small Signal General Purpose PiN Diode SeCoS
BAP64-04 Silicon PIN diode Kexin
BAP64-04 General Purpose Pin Diodes MCC
BAP64-04-HF PIN diode Kexin
BAP64-05 General Purpose Pin Diode MCC

Other Datasheets by NXP Semiconductors

Part Number Description
BAP64-04 Silicon PIN diode
BAP64-02 Silicon PIN diode
BAP64-03 Silicon PIN diode
BAP64-05 Silicon PIN diode
BAP64-05W Silicon PIN diode

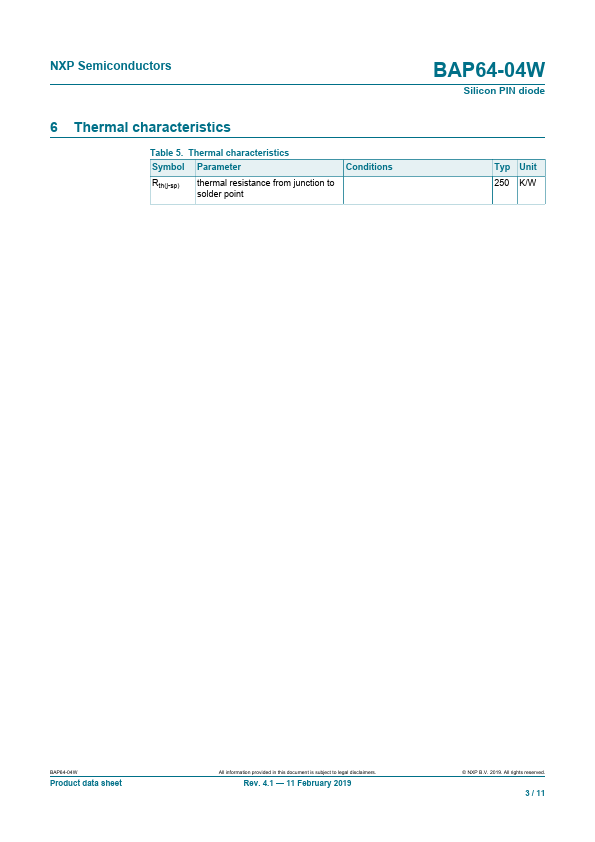

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

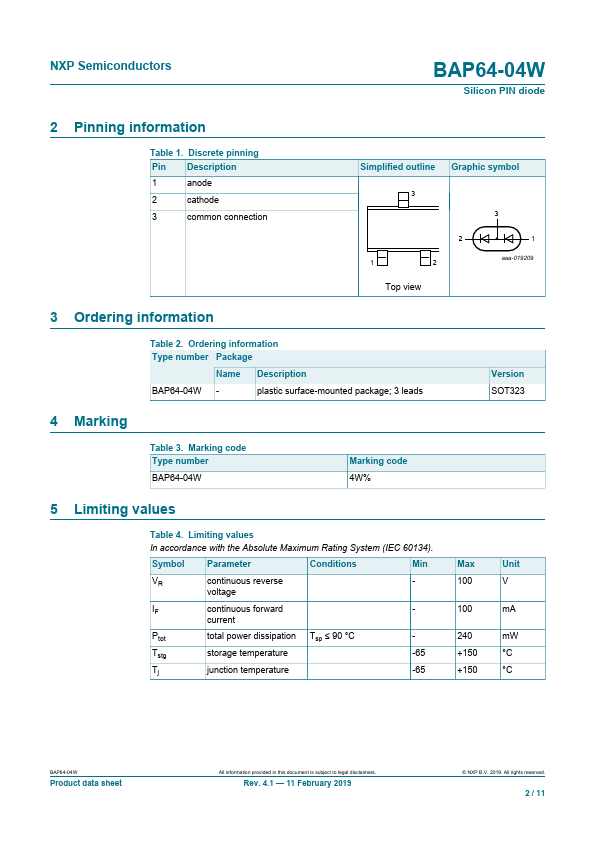

DISCRETE SEMICONDUCTORS DATA SHEET k, halfpage M3D102 BAP64-04W Silicon PIN diode Preliminary specification 1999 Dec 17 Philips Semiconductors Preliminary specification Silicon PIN diode FEATURES • High voltage, current controlled • RF resistor for RF attenuators and switches • Low diode capacitance • Low diode forward resistance • Low series inductance • For applications up to 3 GHz. APPLICATIONS • RF attenuators and switches. DESCRIPTION Two planar PIN diodes in series configuration in a SOT323 small plastic SMD package. 1 2 handbook, halfpage BAP64-04W PINNING PIN 1 2 3 DESCRIPTION anode cathode common connection 3 3 2 1 MAM434 Marking code: 4W- Fig.1 Simplified outline (SOT323) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134).
