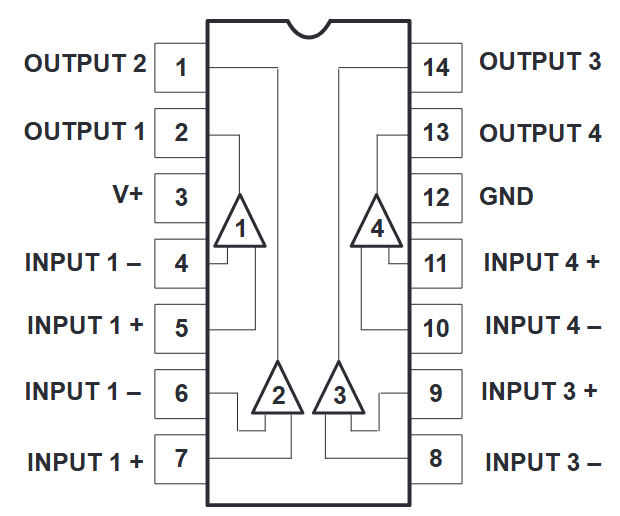

LM239 - Quad voltage comparator

General Description

The LM139 series consists of four independent precision voltage comparators, with an offset voltage specification as low as 2.0mV max for each comparator, which were designed specifically to operate from a single power supply over a wide range of voltages.

Key Features

  • SL00070.
  • Wide single supply voltage range 2.0VDC to 36VDC or dual.
  • Very low supply current drain (0.8mA) independent of supply.
  • Low input biasing current 25nA.
  • Low input offset current ±5nA and offset voltage.
  • Input common.
  • mode voltage range includes ground.
  • Differential input voltage range equal to the power supply voltage.
  • Low output 250mV at 4mA saturation voltage.
  • Output voltage compatible with TTL, DTL, ECL, M.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM239 Low-power quad voltage comparators STMicroelectronics
LM239 Quad Single Supply Comparators Motorola
LM239 Low Power Low Offset Voltage Quad Comparators National Semiconductor
LM239 Low Power Low Offset Voltage Quad Comparators ART CHIP
LM239 Quad Differential Comparators Texas Instruments

Other Datasheets by NXP Semiconductors

Part Number Description
LM239A Quad voltage comparator
LM219 Dual voltage comparator
LM224 Low power quad op amps
LM258 LOW POWER DUAL OPERATIONAL AMPLIFIER
LM2901 Quad voltage comparator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
INTEGRATED CIRCUITS LM139/239/239A/339/339A/LM2901/MC 3302 Quad voltage comparator Product specification IC11 Data Handbook 1995 Nov 27 Philips Semiconductors Philips Semiconductors Product specification Quad voltage comparator LM139/239/239A/339/339A /LM2901/MC3302 DESCRIPTION The LM139 series consists of four independent precision voltage comparators, with an offset voltage specification as low as 2.0mV max for each comparator, which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
