PZT4403 - PNP switching transistor

General Description

PNP switching transistor in a SOT223 plastic package.

NPN complement: PZT4401.

Fig.1 Simplified outline (SOT223) and symbol.

Key Features

  • High current (max. 600 mA).
  • Low voltage (max. 40 V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PZT4403 Epitaxial Planar Transistor SeCoS
PZT4403 PNP Transistor WEJ
PZT4403 40V 600mA PNP switching transistor nexperia
PZT4403 PNP Transistors Kexin
PZT4403-Q 40V 600mA PNP switching transistor nexperia

Other Datasheets by NXP Semiconductors

Part Number Description
PZT4401 NPN switching transistor
PZT2222A NPN switching transistor
PZT2907A PNP switching transistor
PZT3904 NPN switching transistor
PZT3906 PNP switching transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

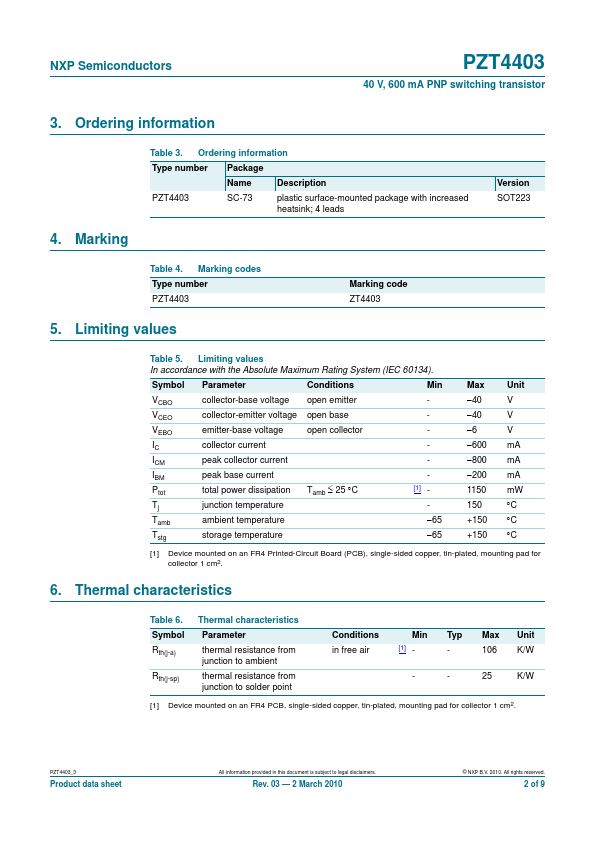

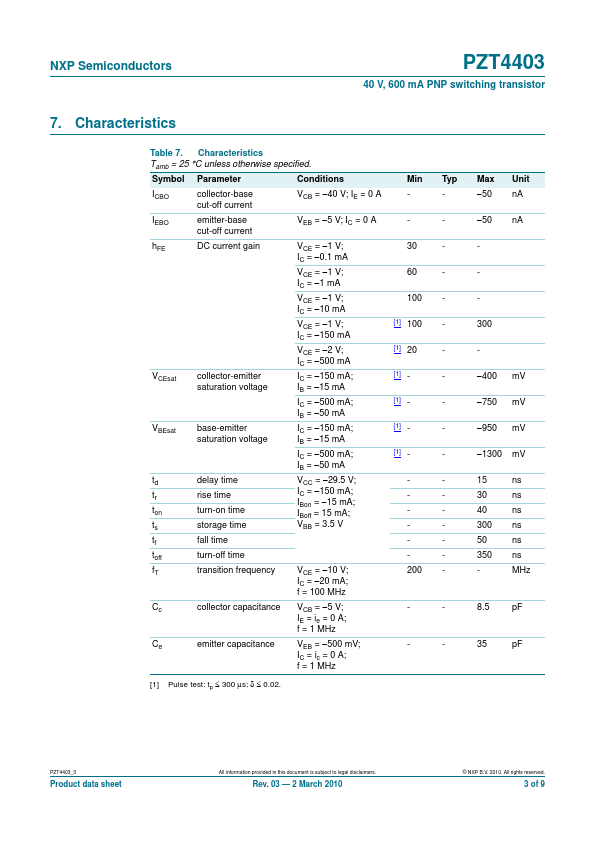

DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D087 PZT4403 PNP switching transistor Product specification 1999 May 10 Philips Semiconductors Product specification PNP switching transistor FEATURES • High current (max. 600 mA) • Low voltage (max. 40 V). APPLICATIONS • Switching and linear amplification. DESCRIPTION PNP switching transistor in a SOT223 plastic package. NPN complement: PZT4401. 1 Top view Marking code: ZT4403 2 3 MAM288 PZT4403 PINNING PIN 1 2, 4 3 base collector emitter DESCRIPTION handbook, halfpage 4 2, 4 1 3 Fig.1 Simplified outline (SOT223) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL VCBO VCEO VEBO IC ICM IBM Ptot Tstg Tj Tamb Note 1.
