NXP Semiconductors S32K341
MCU
| Part No. | S32K341 |
|---|---|
| Datasheet | S32K341 Download |
| Manufacturer |  NXP Semiconductors |
| Description | MCU |
| Buy | Stock & Price |

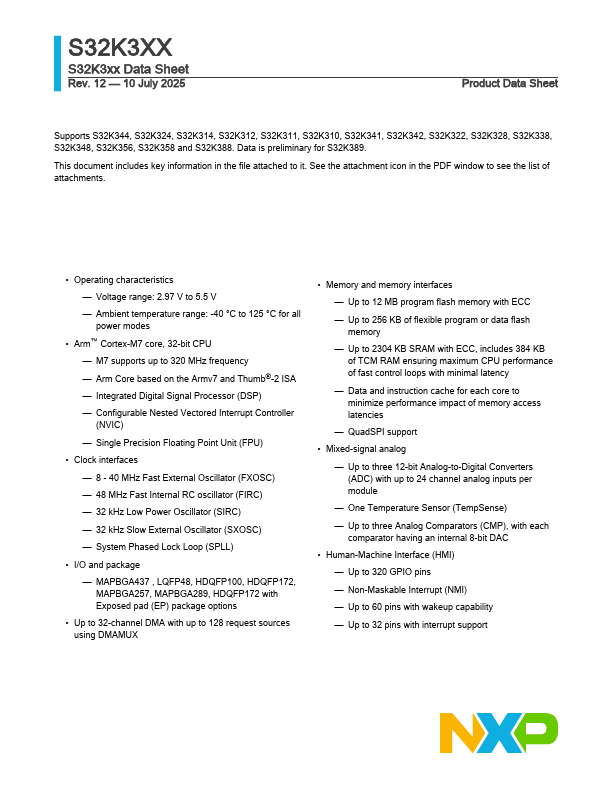

S32K3XX S32K3xx Data Sheet Rev. 12 — 10 July 2025 Product Data Sheet Supports S32K344, S32K324, S32K314, S32K312, S32K311, S32K310, S32K341, S32K342, S32K322, S32K328, S32K338, S32K348, S32K356, S32K358 and S32K388. Data is preliminary for S32K389. This document includes key information in the file attached to it. See the attachment icon in the PDF window to see the list of attachments.
● Operating characteristics — Voltage range: 2.97 V to 5.5 V — Ambient temperature range: -40 °C to 125 °C for all power modes
● Arm™ Cortex-M7 core, 32-bit CPU — M7 supports up to 320 MHz frequency — Arm Core based on the Armv7 and Thumb®-2 ISA — Integrated Digital Signal Processor (DSP) — Configurable Nested Vectored Interrupt Controller (NVIC) — Single Precision Floating Point Unit (FPU)
● Clock interfaces — 8 - 40 MHz Fast External Oscillator (FXOSC) — 48 MHz Fast Internal RC oscillator (FIRC) — 32 kHz Low Power Oscillator (SIRC) — 32 kHz Slow External Oscillator (SXOSC) — System Phased Lock Loop (S...
● Operating characteristics — Voltage range: 2.97 V to 5.5 V — Ambient temperature range: -40 °C to 125 °C for all power modes
● Arm™ Cortex-M7 core, 32-bit CPU — M7 supports up to 320 MHz frequency — Arm Core based on the Armv7 and Thumb®-2 ISA — Integrated Digital Signal Processor (DSP) — Configurable Nested Vectored Interrupt Controller (NVIC) — Single Precision Floating Point Unit (FPU)
● Clock interfaces — 8 - 40 MHz Fast External Oscillator (FXOSC) — 48 MHz Fast Internal RC oscillator (FIRC) — 32 kHz Low Power Oscillator (SIRC) — 32 kHz Slow External Oscillator (SXOSC) — System Phased Lock Loop (S...
