S32K358 Datasheet | NXP Semiconductors

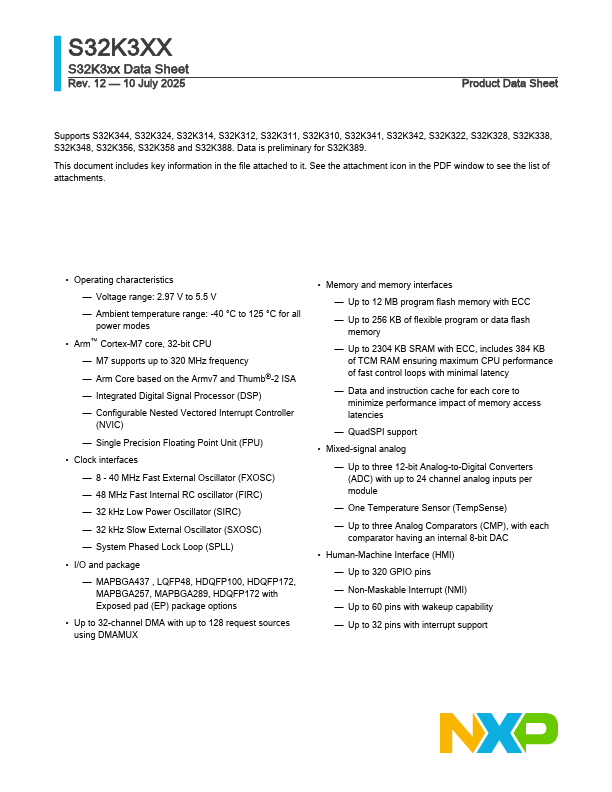

S32K3XX S32K3xx Data Sheet Rev. 12 - 10 July 2025 Product Data Sheet Supports S32K344, S32K324, S32K314, S32K312, S32K311, S32K310, S32K341, S32K342, S32K322, S32K328, S32K338, S32K348, S32K356, S32K358 and S32K388. Data is preliminary for S32K389. This document includes key information in the file attached to it. See the attachment icon in the PDF window to see the list of attachments. - Operating characteristics - Voltage range: 2.97 V to 5.5 V - Ambient temperature range: -40 °C to 125 °C for all power modes - Arm™ Cortex-M7 core, 32-bit CPU - M7 supports up to 320 MHz frequency - Arm Core based on the Armv7 and Thumb®-2 ISA - Integrated Digital Signal Processor (DSP) - Configurable Nested Vectored Interrupt Controller (NVIC) - Single Precision Floating Point Unit (FPU) - Clock interfaces - 8 - 40 MHz Fast External Oscillator (FXOSC) - 48 MHz Fast Internal RC oscillator (FIRC) - 32 k Hz Low Power Oscillator (SIRC) - 32 k Hz Slow External Oscillator (SXOSC) - System Phased Lock Loop (SPLL) - I/O and package - MAPBGA437 , LQFP48, HDQFP100, HDQFP172, MAPBGA257, MAPBGA289, HDQFP172 with Exposed pad (EP) package options - Up to 32-channel DMA with up to 128 request sources using DMAMUX - Memory and memory interfaces - Up to 12 MB program flash memory with ECC - Up to 256 KB of flexible program or data flash memory - Up to 2304 KB SRAM with ECC, includes 384 KB of TCM RAM ensuring maximum CPU performance of fast control loops with minimal...
