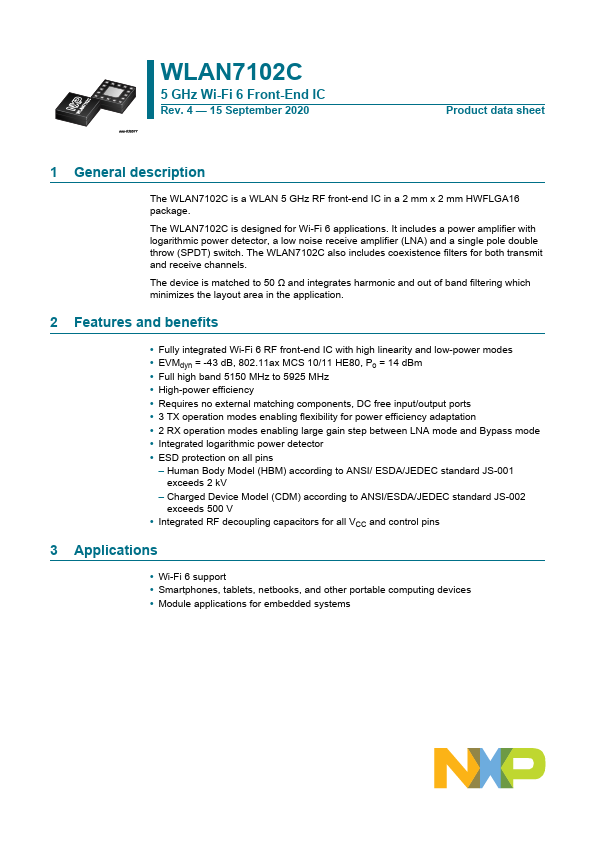

NXP Semiconductors WLAN7102C
The WLAN7102C is a WLAN 5 GHz RF front-end IC in a 2 mm x 2 mm HWFLGA16 package. The WLAN7102C is designed for Wi-Fi 6 applications. It includes a power amplifier with logarithmic power detector, a low noise receive amplifier (LNA) and a single pole double throw (SPDT) switch.WLAN7102C Specifications
- Bandwidth : 775MHz
- Max Frequency : 5.925GHz
- Max Operating Temp : 175°C
Source:
Octopart
| Part No. | WLAN7102C |
|---|---|
| Datasheet | WLAN7102C Download |
| Manufacturer |  NXP Semiconductors |
| Description | 5 GHz Wi-Fi 6 Front-End IC |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● Fully integrated Wi-Fi 6 RF front-end IC with high linearity and low-power modes● EVMdyn = -43 dB, 802.11ax MCS 10/11 HE80, Po = 14 dBm
● Full high band 5150 MHz to 5925 MHz
● High-power efficiency
● Requires no external matching components, DC free input/output ports
● 3 TX operation modes enabling flexibility for power efficiency adaptation
● 2 RX operation modes enabling large gain step between LNA mode and Bypass mode
● Integrated logarithmic power detector
● ESD protection on all pins – Human Body Model (HBM) according to ANSI/ ESDA/JEDEC standard JS-001 exceeds 2 kV – Charged Device Model (CDM) according to ANSI/ESDA/JEDEC standard JS-002 exceeds 500 V
● Integrated RF decoupling capacitors for all VCC and control pins 3
APPLICATIONS
● Wi-Fi 6 support● Smartphones, tablets, netbooks, and other portable computing devices

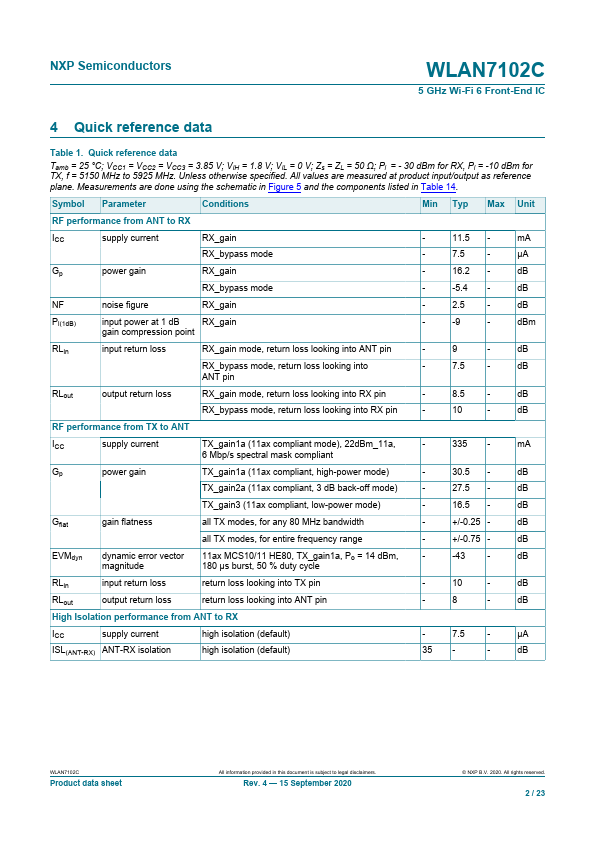

● Module applications for embedded systems NXP Semiconductors WLAN7102C 5 GHz Wi-Fi 6 Front-End IC 4 Quick reference data Table 1. Quick...
