LM3200 - Step-Down DC-DC Converter

General Description

The LM3200 is a DC-DC converter optimized for powering RF power amplifiers (PAs) from a single Lithium-Ion cell.

It steps down an input voltage of 2.7V to 5.5V to a variable output voltage of 0.8V to 3.6V.

Key Features

  • and performance for mobile phones and similar RF PA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM3200 Step-Down DC-DC Converter Texas Instruments
LM320081 LCD Module Sharp
LM320081 Passive Matric LCD Unit Sharp
LM320-N 3-Terminal Negative Regulators Texas Instruments
LM32010P LCD Sharp Electrionic Components

Other Datasheets by National Semiconductor (now Texas Instruments)

Part Number Description
LM320 3-Terminal Negative Regulators
LM3203 Step-Down DC-DC Converter
LM3204 Step-Down DC-DC Converter
LM3207 Step-Down DC-DC Converter
LM3208 Step-Down DC-DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

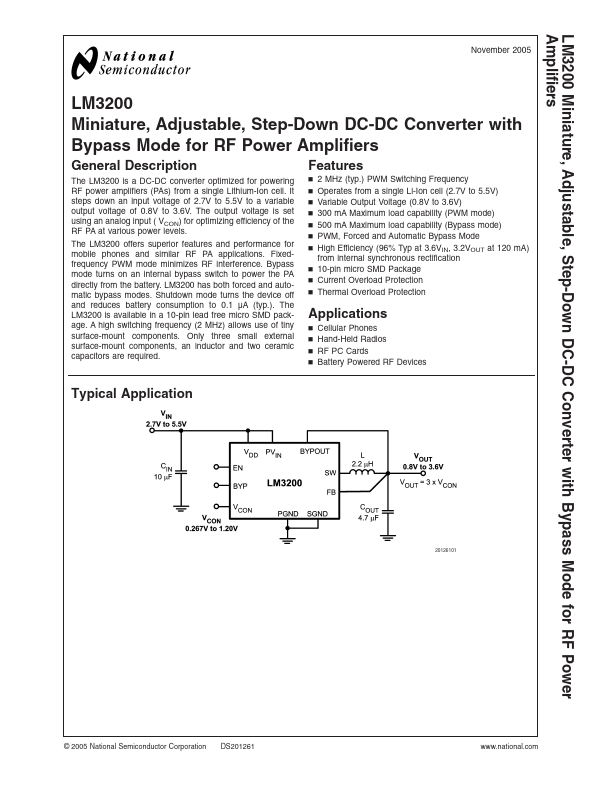

LM3200 Miniature, Adjustable, Step-Down DC-DC Converter with Bypass Mode for RF Power Amplifiers November 2005 LM3200 Miniature, Adjustable, Step-Down DC-DC Converter with Bypass Mode for RF Power Amplifiers General Description The LM3200 is a DC-DC converter optimized for powering RF power amplifiers (PAs) from a single Lithium-Ion cell. It steps down an input voltage of 2.7V to 5.5V to a variable output voltage of 0.8V to 3.6V. The output voltage is set using an analog input ( VCON) for optimizing efficiency of the RF PA at various power levels. The LM3200 offers superior features and performance for mobile phones and similar RF PA applications. Fixedfrequency PWM mode minimizes RF interference.
