LM380 Datasheet 2.5w Audio Power Amplifier

Manufacturer: National Semiconductor (now Texas Instruments)

Overview: LM380 2.5W Audio Power Amplifier August 2000 LM380 2.5W Audio Power.

Datasheet Details

Part number	LM380
Manufacturer	National Semiconductor (now Texas Instruments)
File Size	251.36 KB
Description	2.5W Audio Power Amplifier
Datasheet	LM380_NationalSemiconductor.pdf

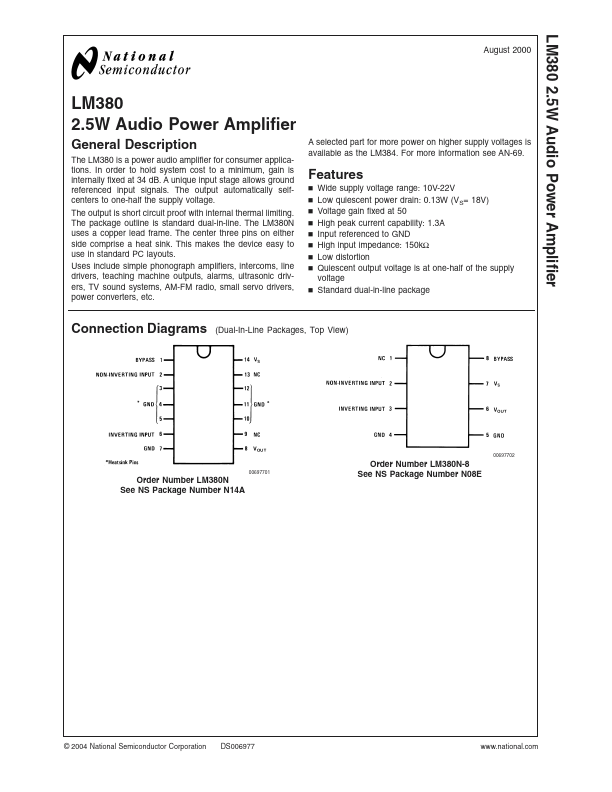

General Description

The LM380 is a power audio amplifier for consumer applications.

In order to hold system cost to a minimum, gain is internally fixed at 34 dB.

A unique input stage allows ground referenced input signals.

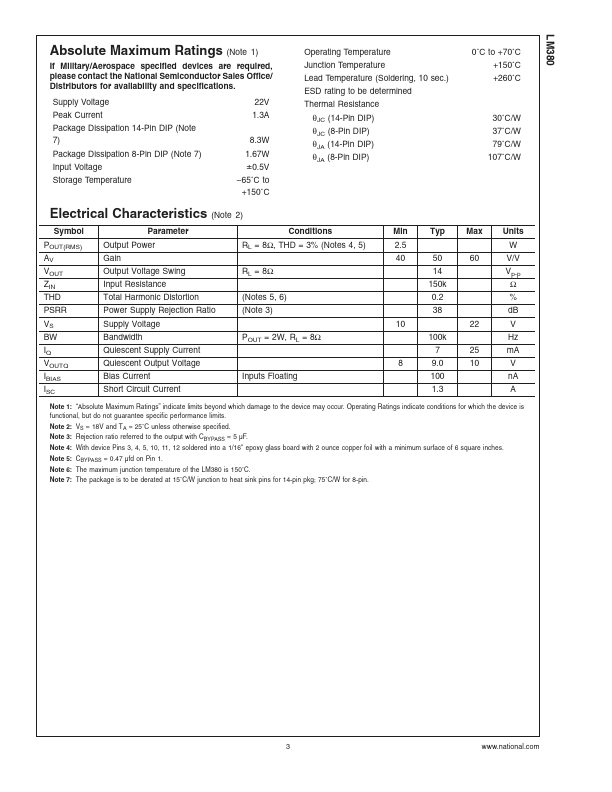

Key Features

n Wide supply voltage range: 10V-22V n Low quiescent power drain: 0.13W (VS= 18V) n Voltage gain fixed at 50 n High peak current capability: 1.3A n Input referenced to GND n High input impedance: 150kΩ n Low distortion n Quiescent output voltage is at one-half of the supply voltage n Standard dual-in-line package Connection Diagrams (Dual-In-Line Packages, Top View) 00697701 Order Number LM380N See NS Package Number N14A Order Number LM380N-8 See NS Package Number N08E 00697702 © 2004 Natio.
