DS0025C Datasheet | National Semiconductor

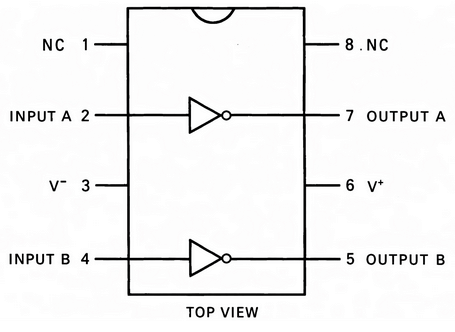

Description The DS0025C is a monolithic low cost two phase MOS clock driver that is designed to be driven by TTL line drivers or buffers such as the DS8830 or DM7440 Two input coupling capacitors are used to perform the level shift from TTL to MOS logic levels Optimum performance in turn-off delay and fall time are obtained when the output pulse is logically controlled by the input However output pulse width may be set by selection of the input capacitor eliminating the need for tight input pulse control Features Y 8-lead TO-5 or 8-lead or 14-lead dual-in-line package Y High Output Voltage Swings up to 25V Y High Output Current Drive Capability up to 1 5A Y Rep Rate 1 0 MHz into l 1000 p F Y Driven by DS8830 DM7440 Y ‘‘Zero’’ Quiescent Power Connection Diagrams Metal Can Package Dual-In-Line Package Note Pin 4 connected to case Top View Order Number DS0025CH See NS Package Number...
