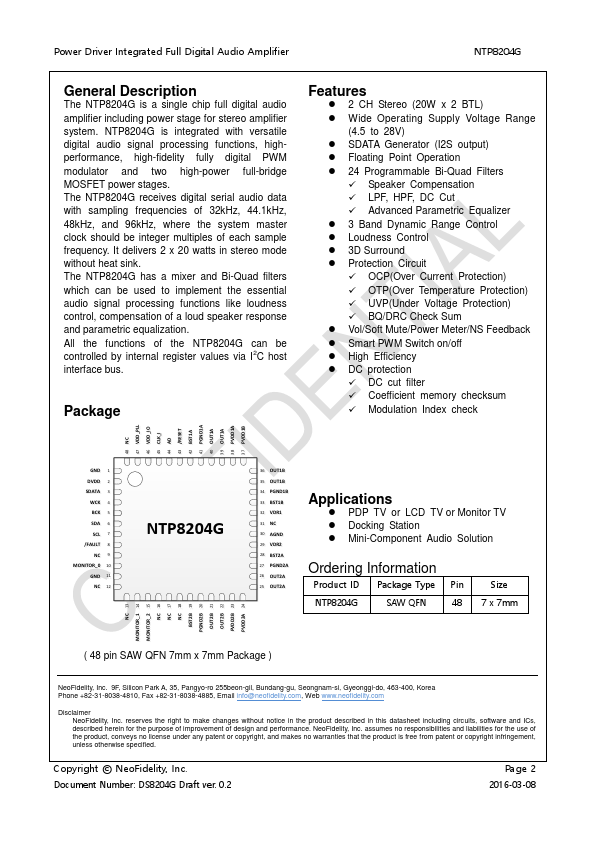

NTP8204G Description
The NTP8204G is a single chip full digital audio amplifier including power stage for stereo amplifier system. NTP8204G is integrated with versatile digital audio signal processing functions, highperformance, high-fidelity fully digital PWM modulator and two high-power full-bridge MOSFET power stages. The NTP8204G receives digital serial audio data with sampling frequencies of 32kHz, 44.1kHz, 48kHz, and 96kHz, where...
NTP8204G Key Features
- 2 CH Stereo (20W x 2 BTL)
- Wide Operating Supply Voltage Range
- SDATA Generator (I2S output)
- Floating Point Operation
- 24 Programmable Bi-Quad Filters
- Speaker pensation
- LPF, HPF, DC Cut
- Advanced Parametric Equalizer
- 3 Band Dynamic Range Control
- Loudness Control
