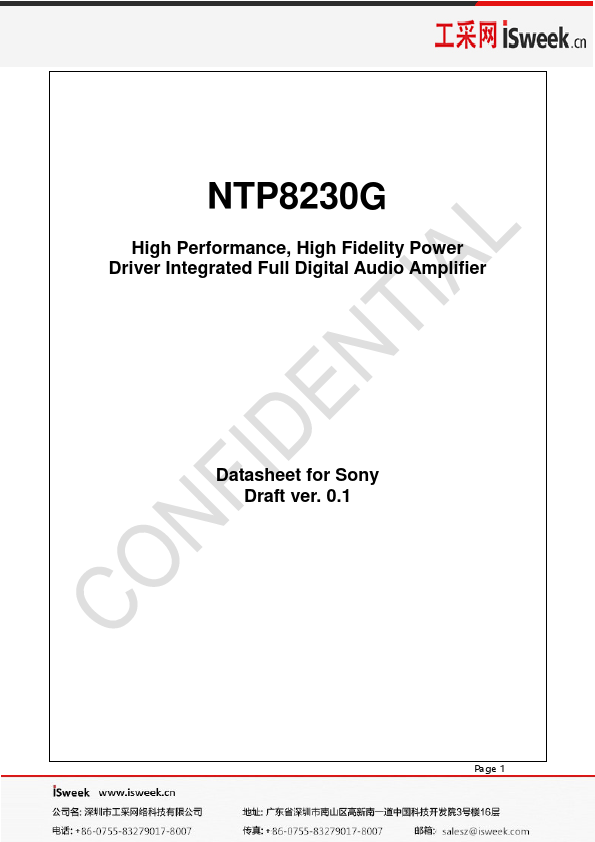

NTP8230G Overview

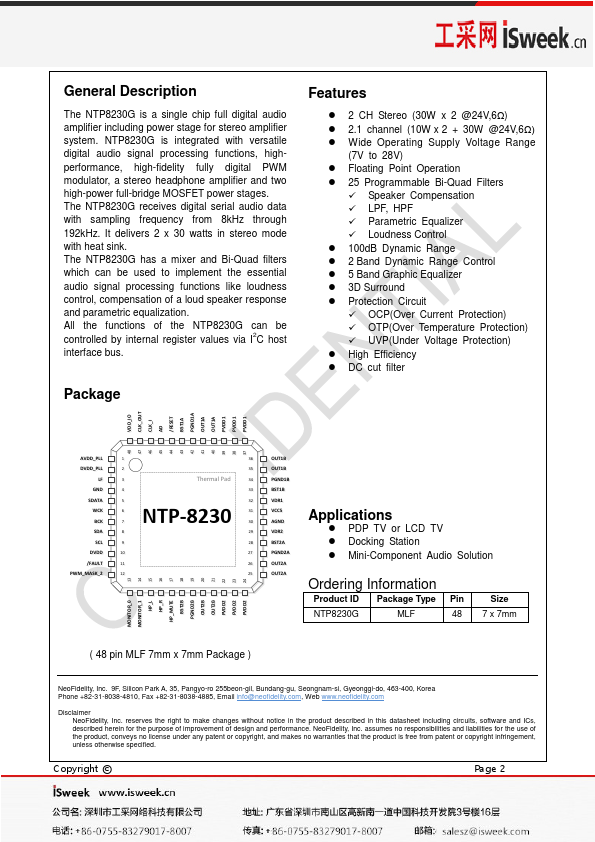

Description
The NTP8230G is a single chip full digital audio amplifier including power stage for stereo amplifier system. NTP8230G is integrated with versatile digital audio signal processing functions, highperformance, high-fidelity fully digital PWM modulator, a stereo headphone amplifier and two high-power full-bridge MOSFET power stages.
Key Features
- Wide Operating Supply Voltage Range (7V to 28V)
- Floating Point Operation
- 25 Programmable Bi-Quad Filters
- Speaker Compensation
- Parametric Equalizer
- Loudness Control
- 100dB Dynamic Range
- 2 Band Dynamic Range Control
- 5 Band Graphic Equalizer
- Protection Circuit
