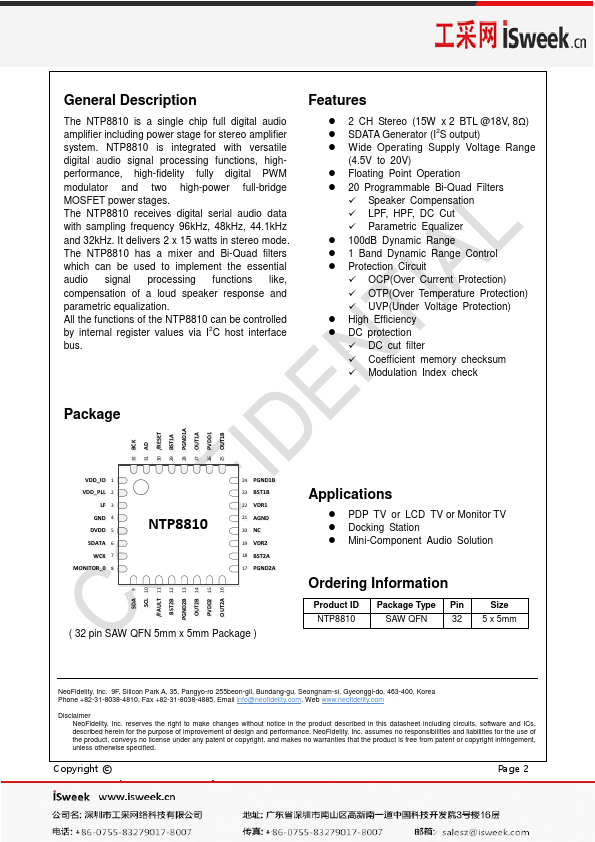

NTP8810 Description
The NTP8810 is a single chip full digital audio amplifier including power stage for stereo amplifier system. NTP8810 is integrated with versatile digital audio signal processing functions, highperformance, high-fidelity fully digital PWM modulator and two high-power full-bridge MOSFET power stages. The NTP8810 receives digital serial audio data with sampling frequency 96kHz, 48kHz, 44.1kHz and 32kHz.
NTP8810 Key Features
- 2 CH Stereo (15W x 2 BTL @18V, 8Ω)
- SDATA Generator (I2S output)
- Wide Operating Supply Voltage Range
- Floating Point Operation
- 20 Programmable Bi-Quad Filters
- Speaker pensation
- LPF, HPF, DC Cut
- Parametric Equalizer
- 100dB Dynamic Range
- 1 Band Dynamic Range Control
