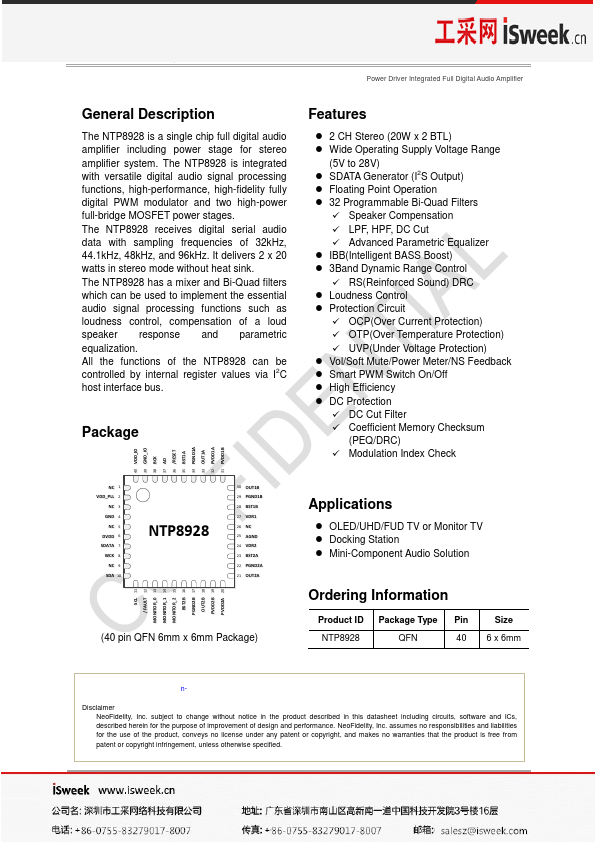

NTP8928 Description
The NTP8928 is a single chip full digital audio amplifier including power stage for stereo amplifier system. The NTP8928 is integrated with versatile digital audio signal processing functions, high-performance, high-fidelity fully digital PWM modulator and two high-power full-bridge MOSFET power stages. The NTP8928 receives digital serial audio data with sampling frequencies of 32kHz, 44.1kHz, 48kHz, and 96kHz.
NTP8928 Key Features
- 2 CH Stereo (20W x 2 BTL)
- Wide Operating Supply Voltage Range
- SDATA Generator (I2S Output)
- Floating Point Operation
- 32 Programmable Bi-Quad Filters
- Speaker pensation
- LPF, HPF, DC Cut
- Advanced Parametric Equalizer
- IBB(Intelligent BASS Boost)
- 3Band Dynamic Range Control
