JRC555 - TIMER

General Description

capable of producing accruate time delays or oscillation.

In the time delay mode, delay time is precisely controlled by only two external parts : a resistor and a capacitor.

Key Features

  • S.
  • Operating Voltage (4.5V to 16V).
  • Less Number of External Components.
  • Package Outline DIP8, DMP8, SSOP8, SIP8.
  • Bipolar Technology NJM555L NJM555V.
  • PIN.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JRC5532 Low Noise Dual Operational Amplifier JRC
JRC5532C LOW-NOISE DUAL OPERATIONAL AMPLIFIER JRC
JRC5532CG LOW-NOISE DUAL OPERATIONAL AMPLIFIER JRC
JRC5532D Low Noise Dual Operational Amplifier JRC
JRC5532DD Low Noise Dual Operational Amplifier JRC

Other Datasheets by New Japan Radio

Part Number Description
JRC2072 NJM2072
JRC2073 NJM2073
JRC2113 NJM2113
JRC2120 NJM2120
JRC2245 NJM2245

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

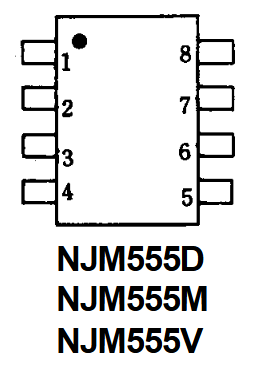

NJM555 TIMER ■ GENERAL DESCRIPTION The NJM555 monolithic timing circuit is a highly stable controller capable of producing accruate time delays or oscillation. In the time delay mode, delay time is precisely controlled by only two external parts : a resistor and a capacitor. For operation as an oscillator, both the free running frequency and the duty cycle are accurately controlled by two external resistors and a capacitor. Terminals are provided for triggering and resetting. The circuit will trigger and reset on falling waveforms. The output can source or sink up to 200mA or drive TTL circuits. ■ PACKAGE OUTLINE NJM555D NJM555M ■ FEATURES ● Operating Voltage (4.
