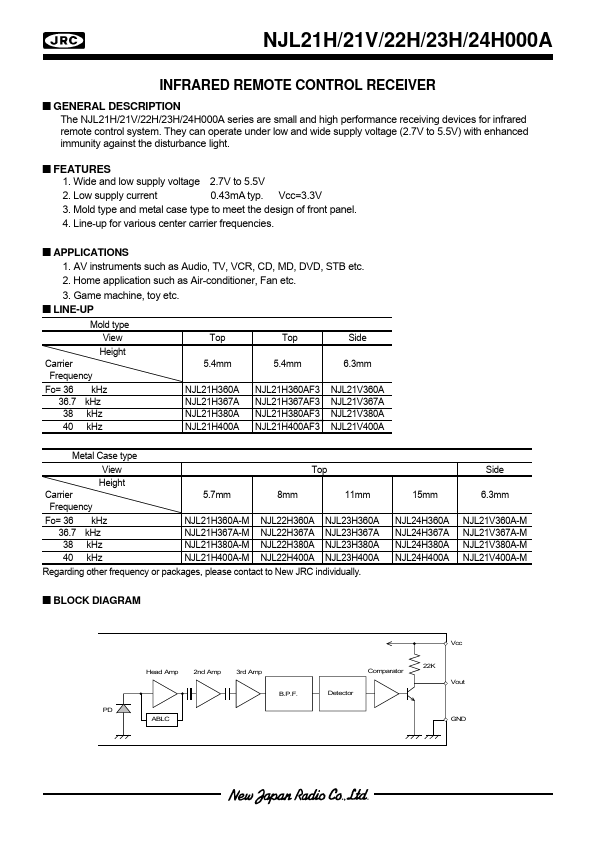

NJL21H367AF3
DESCRIPTION
The NJL21H/21V/22H/23H/24H000A series are small and high performance receiving devices for infrared remote control system. They can operate under low and wide supply voltage (2.7V to 5.5V) with enhanced immunity against the disturbance light.
FEATURES
1. Wide and low supply voltage 2.7V to 5.5V
2. Low supply current
0.43m A typ. Vcc=3.3V
3. Mold type and metal case type to meet the design of front panel.
4. Line-up for various center carrier frequencies.
APPLICATIONS
1. AV instruments such as Audio, TV, VCR, CD, MD, DVD, STB etc.
2. Home application such as Air-conditioner, Fan etc.
3. Game machine, toy etc.
LINE-UP
Mold type
View
Top
Top
Side
Height Carrier Frequency
5.4mm
5.4mm
6.3mm
Fo= 36 36.7 38 40 k Hz k Hz k Hz k Hz
NJL21H360A NJL21H367A NJL21H380A NJL21H400A
NJL21H360AF3 NJL21V360A NJL21H367AF3 NJL21V367A NJL21H380AF3 NJL21V380A
..
NJL21H400AF3 NJL21V400A
Metal Case type
View
Top
Height Carrier Frequency
5.7mm
8mm
11mm
Fo= 36 k...
