NJL5820R - Rotary Detection Sensor

Datasheet Summary

Description

NJL5820R is the compact surface mount type photo reflector, which is built in a high Brightness Infrared LED and PDIC.

It can obtain two-phase(A,B) digital signals with the recommended striped reflector.

Features

  • Miniature, thin package: 2.6mm × 2.5mm × 0.8mm.
  • Digital two outputs type: A/ B phases.
  • Resolution 50.8LPI.
  • Lines Per Inch (2LPmm.
  • Lines Per mm).
  • Recommendation strip width: 0.25mm.
  • Pb free soldering re-flowing permitted: 255°C, 2times.
  • Halogen free, Pb free.
  • Compliant with RoHS directive.

📥 Download Datasheet

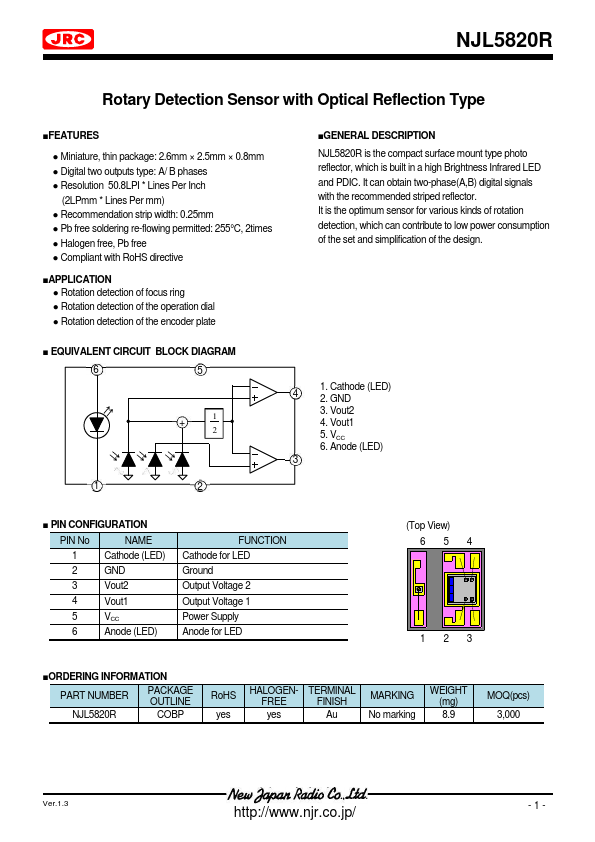

Datasheet preview – NJL5820R

Datasheet Details

Part number NJL5820R
Manufacturer New Japan Radio
File Size 332.29 KB
Description Rotary Detection Sensor
Datasheet download datasheet NJL5820R Datasheet

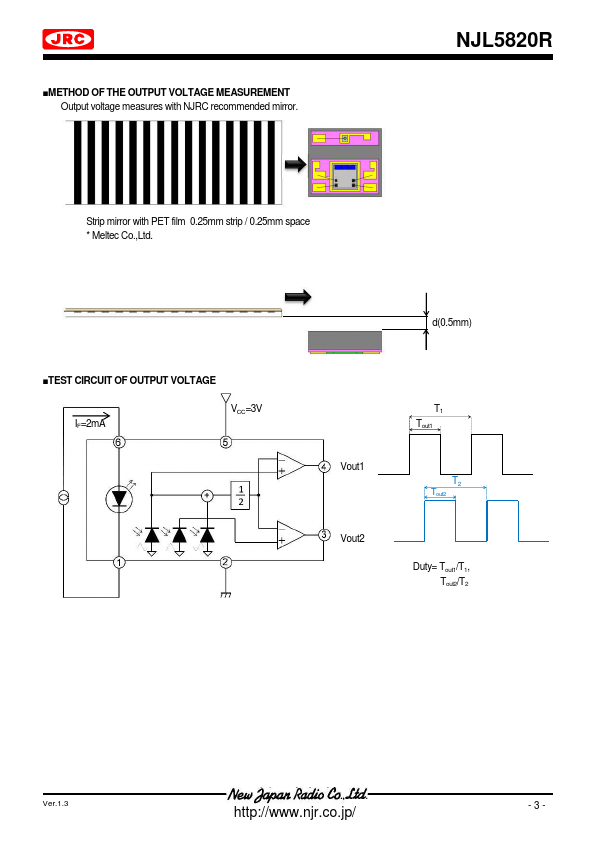

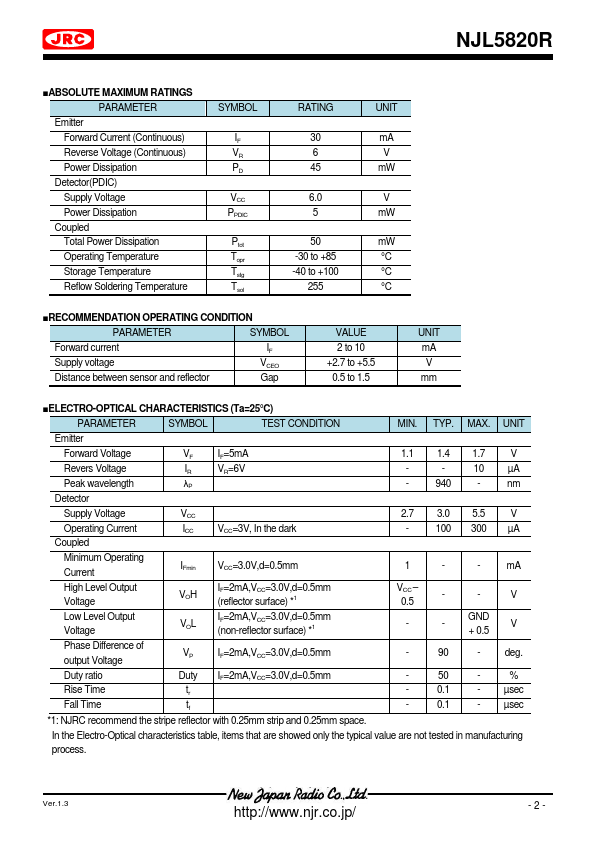

Additional preview pages of the NJL5820R datasheet.

📁 Similar Datasheet

  • NJL5821R - Encoder (Nisshinbo)
  • NJL5822R - Encoder (Nisshinbo)
  • NJL5313R - Biomonitoring Sensor (JRC)
  • NJL5901AR - COBP PHOTO REFLECTOR (JRC)
  • NJL5901AR-1 - COBP PHOTO REFLECTOR (JRC)
  • NJL5902R - COBP PHOTO REFLECTOR (JRC)
  • NJL5902R-1 - COBP PHOTO REFLECTOR (JRC)
  • NJL0281D - Complementary ThermalTrak Transistors (ON Semiconductor)
  • NJL0302D - Complementary ThermalTrak Transistors (ON Semiconductor)
  • NJL1302D - Complementary ThermalTrak Transistors (ON Semiconductor)
Other Datasheets by New Japan Radio

Full PDF Text Transcription

Click to expand full text
NJL5820R Rotary Detection Sensor with Optical Reflection Type ■FEATURES ● Miniature, thin package: 2.6mm × 2.5mm × 0.8mm ● Digital two outputs type: A/ B phases ● Resolution 50.8LPI * Lines Per Inch (2LPmm * Lines Per mm) ● Recommendation strip width: 0.25mm ● Pb free soldering re-flowing permitted: 255°C, 2times ● Halogen free, Pb free ● Compliant with RoHS directive ■APPLICATION ● Rotation detection of focus ring ● Rotation detection of the operation dial ● Rotation detection of the encoder plate ■GENERAL DESCRIPTION NJL5820R is the compact surface mount type photo reflector, which is built in a high Brightness Infrared LED and PDIC. It can obtain two-phase(A,B) digital signals with the recommended striped reflector.
