NJL5911R - PHOTO REFLECTOR

General Description

The NJL5911R is the ultra thin surface mount type photo reflector, which is built in an Infrared LED and a high sensitive photo transistor.

This product has applied the COBP technology and has realized the thinness 0.35mm.

APPLICATION Detecting the location of lens for DSC and Cel

Key Features

  • br>.
  • Miniature, thin package: 1.66 x 1.24 x 0.35mm.
  • Built-in visible light cut-off filter function.
  • Pb free solder reflowing permitted: 255deg. C, 2times.
  • Halogen free, Pb free.
  • Compliant with RoHS directive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJL5901AR COBP PHOTO REFLECTOR JRC
NJL5901AR-1 COBP PHOTO REFLECTOR JRC
NJL5902R COBP PHOTO REFLECTOR JRC
NJL5902R-1 COBP PHOTO REFLECTOR JRC
NJL5313R Biomonitoring Sensor JRC

Other Datasheets by New Japan Radio

Part Number Description
NJL5901R COBP PHOTO REFLECTOR
NJL5901R-1 COBP PHOTO REFLECTOR
NJL5901R-2 COBP PHOTO REFLECTOR
NJL5902R-2 COBP PHOTO REFLECTOR
NJL5905R COBP PHOTO REFLECTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

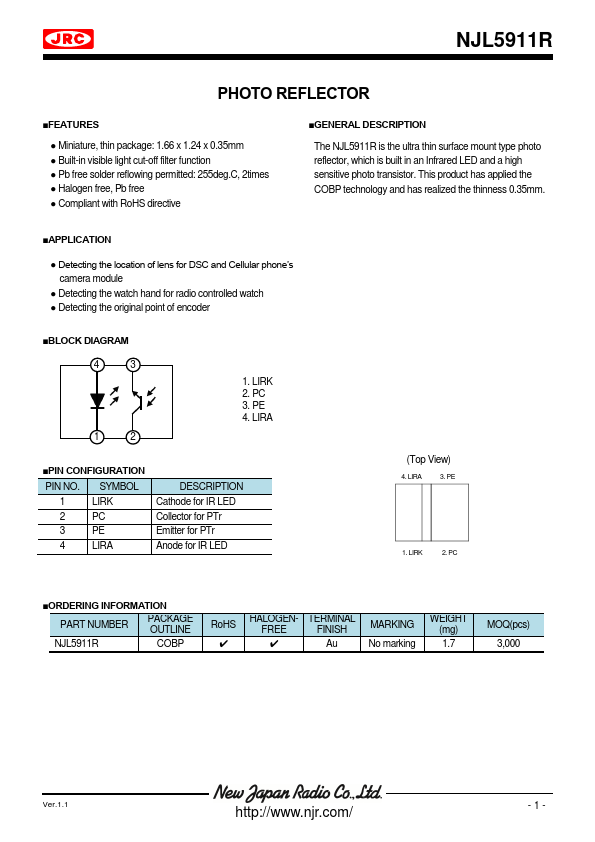

 D0 NJL5911R PHOTO REFLECTOR ■FEATURES ● Miniature, thin package: 1.66 x 1.24 x 0.35mm ● Built-in visible light cut-off filter function ● Pb free solder reflowing permitted: 255deg.C, 2times ● Halogen free, Pb free ● Compliant with RoHS directive ■GENERAL DESCRIPTION The NJL5911R is the ultra thin surface mount type photo reflector, which is built in an Infrared LED and a high sensitive photo transistor. This product has applied the COBP technology and has realized the thinness 0.35mm. P2 P0 ■APPLICATION ● Detecting the location of lens for DSC and Cellular phone’s camera module ● Detecting the watch hand for radio controlled watch ● Detecting the original point of encoder ■BLOCK DIAGRAM 4 3 1 2 1. LIRK 2. PC 3. PE 4. LIRA ■PIN CONFIGURATION PIN NO.
