NJL6193R-3 Datasheet Thin Type Cobp Photo Diode

Manufacturer: New Japan Radio

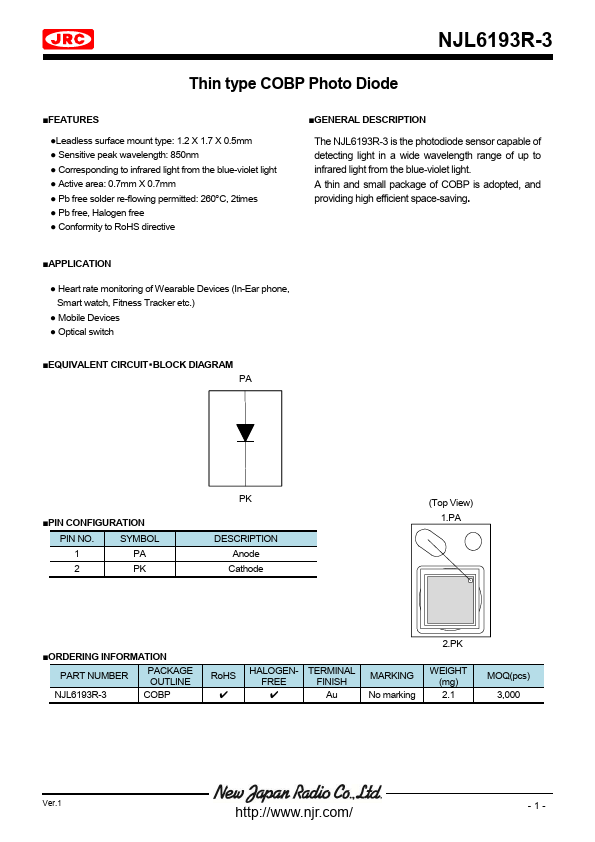

Overview: NJL6193R-3 Thin type COBP Photo Diode ■.

General Description

The NJL6193R-3 is the photodiode sensor capable of detecting light in a wide wavelength range of up to infrared light from the blue-violet light.

A thin and small package of COBP is adopted, and providing high efficient space-saving.

■APPLICATION ● Heart rate monitoring of Wearable Devices (In-Ear phone, Smart watch, Fitness Tracker etc.) ● Mobile Devices ● Optical switch ■EQUIVALENT CIRCUIT・BLOCK DIAGRAM PA ■PIN CONFIGURATION PIN NO.

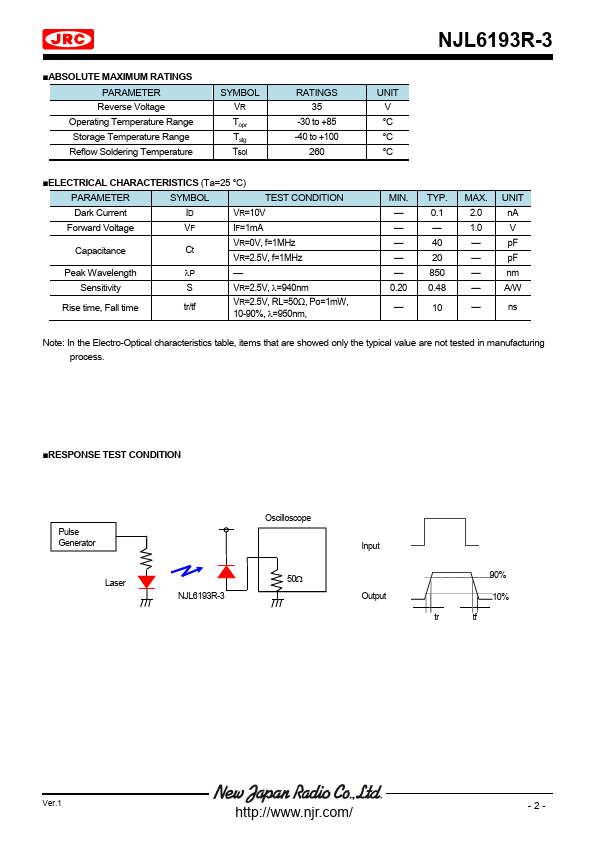

Key Features

  • Leadless surface mount type: 1.2 X 1.7 X 0.5mm.

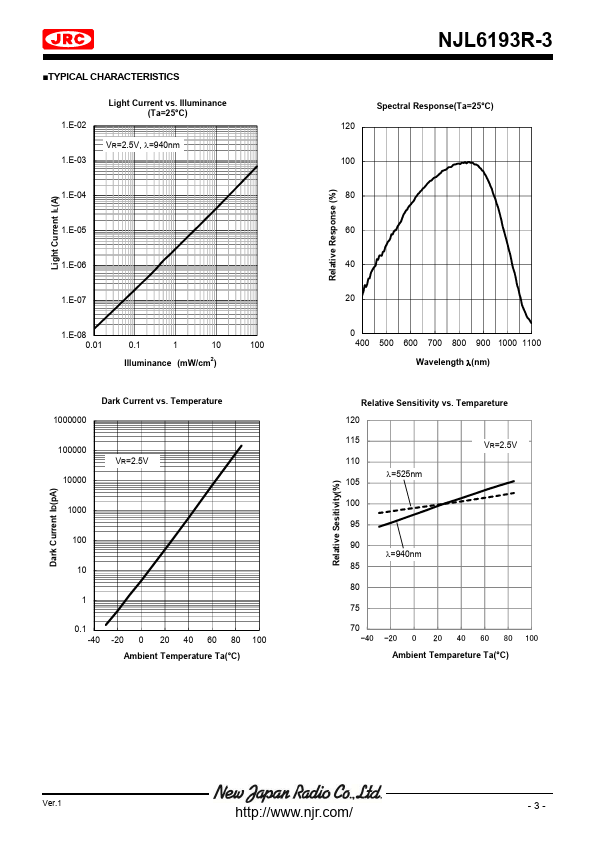

  • Sensitive peak wavelength: 850nm.
  • Corresponding to infrared light from the blue-violet light.
  • Active area: 0.7mm X 0.7mm.
  • Pb free solder re-flowing permitted: 260C, 2times.
  • Pb free, Halogen free.
  • Conformity to RoHS directive.
