NJL9101R - Opt-Pass Sensor

Description

The NJL9101R is the high-precision optical position sensor, which is combining with a super luminosity RED LED and Si light-sensitive element into small package.

Three sin waves with high precision phase difference will output by using the dedicated striped mirror.

Features

  • Built-in function of visible light cut-off filter.
  • Miniature, thin package: 2.3mm × 2.0mm × 0.6mm.
  • Pb free soldering re-flowing permitted: 255°C, 2times.
  • Halogen free, Pb free.
  • Compliant with RoHS directive.

📥 Download Datasheet

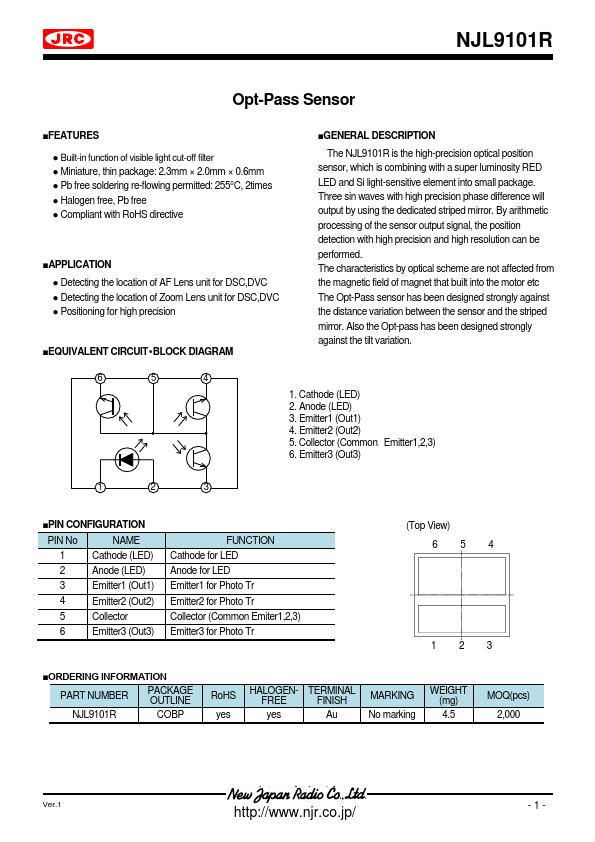

Datasheet preview – NJL9101R

Datasheet Details

Part number NJL9101R
Manufacturer New Japan Radio
File Size 861.67 KB
Description Opt-Pass Sensor
Datasheet download datasheet NJL9101R Datasheet

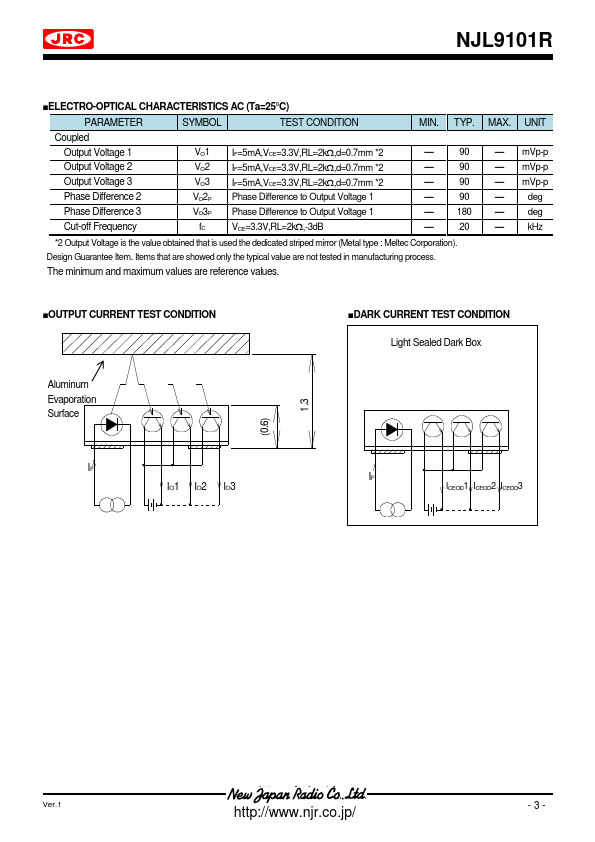

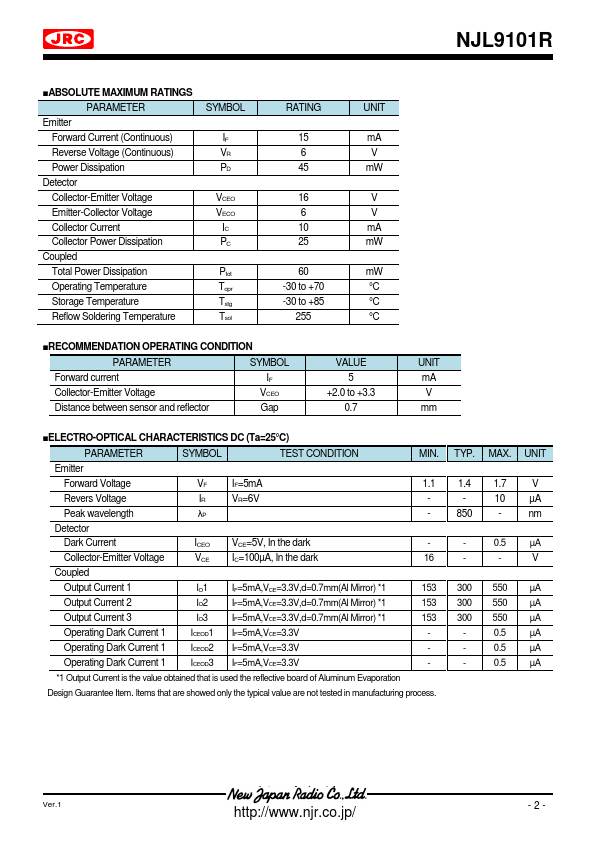

Additional preview pages of the NJL9101R datasheet.

📁 Similar Datasheet

  • NJL0281D - Complementary ThermalTrak Transistors (ON Semiconductor)
  • NJL0302D - Complementary ThermalTrak Transistors (ON Semiconductor)
  • NJL1302D - Complementary ThermalTrak Transistors (ON Semiconductor)
  • NJL21193DG - Complementary ThermalTrak Transistors (ON Semiconductor)
  • NJL21194DG - Complementary ThermalTrak Transistors (ON Semiconductor)
  • NJL25H000 - Infrared Remote Control Receiver (JRC)
  • NJL25V000 - Infrared Remote Control Receiver (JRC)
  • NJL28H000 - Infrared Remote Control Receiver (JRC)
  • NJL28V000 - Infrared Remote Control Receiver (JRC)
  • NJL3281D - Complementary ThermalTrak Transistors (ON Semiconductor)
Other Datasheets by New Japan Radio
  • NJL21H - INFRARED REMOTE CONTROL RECEIVER
  • NJL21V - INFRARED REMOTE CONTROL RECEIVER
  • NJL22H - INFRARED REMOTE CONTROL RECEIVER
  • NJL23H - INFRARED REMOTE CONTROL RECEIVER
  • NJL24H - INFRARED REMOTE CONTROL RECEIVER
  • NJL31H000A - (NJL3xH000A) INFRARED REMOTE CONTROL RECEIVER
  • NJL31V000A - (NJL3xH000A) INFRARED REMOTE CONTROL RECEIVER
  • NJL32H000A - (NJL3xH000A) INFRARED REMOTE CONTROL RECEIVER

Full PDF Text Transcription

Click to expand full text
NJL9101R Opt-Pass Sensor ■FEATURES ● Built-in function of visible light cut-off filter ● Miniature, thin package: 2.3mm × 2.0mm × 0.6mm ● Pb free soldering re-flowing permitted: 255°C, 2times ● Halogen free, Pb free ● Compliant with RoHS directive ■APPLICATION ● Detecting the location of AF Lens unit for DSC,DVC ● Detecting the location of Zoom Lens unit for DSC,DVC ● Positioning for high precision ■EQUIVALENT CIRCUITBLOCK DIAGRAM ■GENERAL DESCRIPTION The NJL9101R is the high-precision optical position sensor, which is combining with a super luminosity RED LED and Si light-sensitive element into small package. Three sin waves with high precision phase difference will output by using the dedicated striped mirror.
