NewVision NV3007

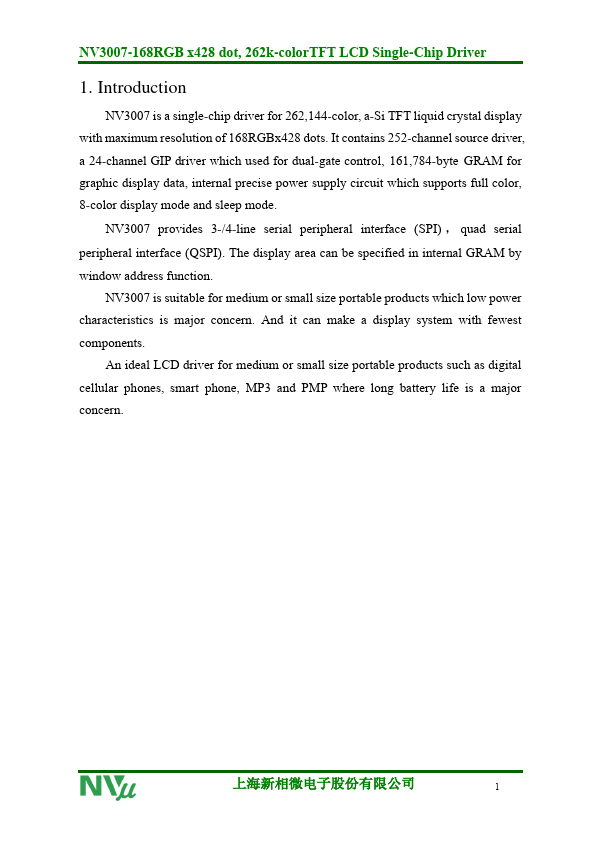

NV3007 is a single-chip driver for 262,144-color, a-Si TFT liquid crystal display with maximum resolution of 168RGBx428 dots. It contains 252-channel source driver, a 24-channel GIP driver which used for dual-gate control, 161,784-byte GRAM for graphic display data, internal precise power supply circuit which supports full color, 8-color display mode and sleep mode. The display area can be specified in internal GRAM by window address function.| Part No. | NV3007 |
|---|---|
| Datasheet | NV3007 Download |
| Manufacturer | NewVision |
| Description | A-Si TFT LCD Single Chip Driver |
| Buy | Stock & Price |

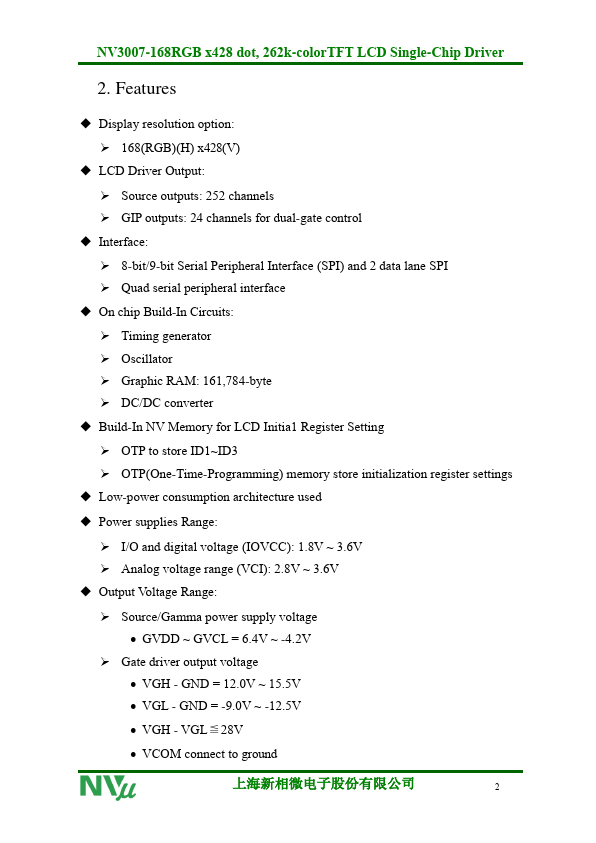

FEATURES
● Display resolution option: ➢ 168(RGB)(H) x428(V)● LCD Driver Output: ➢ Source outputs: 252 channels ➢ GIP outputs: 24 channels for dual-gate control
● Interface: ➢ 8-bit/9-bit Serial Peripheral Interface (SPI) and 2 data lane SPI ➢ Quad serial peripheral interface
● On chip Build-In Circuits: ➢ Timing generator ➢ Oscillator ➢ Graphic RAM: 161,784-byte ➢ DC/DC converter
● Build-In NV Memory for LCD Initia1 Register Setting ➢ OTP to store ID1~ID3 ➢ OTP(One-Time-Programming) memory store initialization register settings
● Low-power consumption architecture used
● Power supplies Range: ➢ I/O and digital voltage (IOVCC): 1.8V ~ 3.6V ➢ Analog voltage range (VCI): 2.8V ~ 3.6V
● Output Voltage Range: ➢ Source/Gamma power supply voltage
● GVDD ~ GVCL = 6.4V ~ -4.2V ➢ Gate driver output voltage
● VGH - GND = 12.0V ~ 15.5V
● VGL - GND = -9.0V ~ -12.5V
● VGH - VGL≦28V
● VCOM connect to ground 上海新相微电子股份有限公司 2 NV3007-168RGB x428 dot, 262k-colorTFT LCD Single-Chip Driver
● Display color:...
