GR8
GR8 is powerful application processor manufactured by Next Thing.
eatures a 1GHz Allwinner R8 ARMv7 Cortex-A8 processor with NEON SIMD extensions and a Mali-400 GPU. 256MB of Nanya DDR3 SDRAM is bined with the R8 processor into a 14mm x 14mm, 0.8mm pitch 252 ball FBGA package.
In addition to the Mali-400 graphic engine that supports Open GL ES 1.0 and 2.0. GR8 includes a video engine for encoding and decoding codecs such as VP6/8, AVS, H.264, H.263, MPEG-1/2/4 and a display engine for a hardware cursor, alpha blending, and anti-flicker.
GR8 also Features many popular peripheral interfaces: Two-Wire Interface, two UARTs (one 2-wire and one 4-wire), SD Card-ready SPI, two PWM outputs, a 6-bit ADC, I2S digital audio, S/PDIF IEC-60958 digital audio output, two HS/FS/LS USB PHYs (one USB 2.0 Host and one USB 2.0 OTG), a CMOS Sensor Interface.
GR8 is $6 in any quantity and includes the Allwinner AXP209 power management unit. The minimum order quantity for GR8 + AXP209 is one.
We can’t wait to see how you’ll design GR8 in to your next product.
1.1. Applications
- Physical puting
- Voice Recognition
- Smart “Clapper”
- Animated GIF Camera
- Smart Consumer Devices
- Portable Audio Devices
- Cyber Dog Robot Toys
GR8 Datasheet (Version 1.0)
Copyright © 2016 Next Thing Co. All Rights Reserved.
Page 7

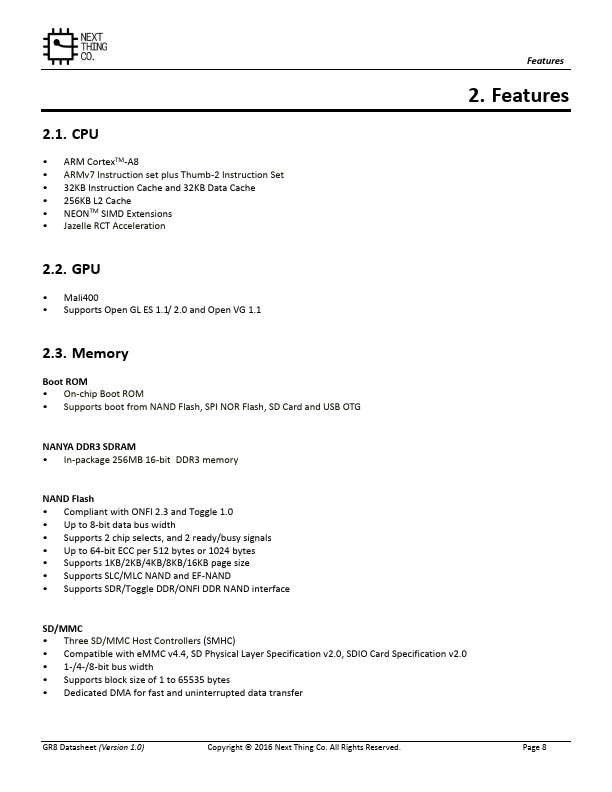

2.1. CPU
- ARM Cortex TM-A8
- ARMv7 Instruction set plus Thumb-2 Instruction Set
- 32KB Instruction Cache and 32KB Data Cache
- 256KB L2 Cache
- NEONTM SIMD Extensions
- Jazelle RCT Acceleration
Features
2. Features
2.2. GPU
- Mali400
- Supports Open GL ES 1.1/ 2.0 and Open VG 1.1
2.3. Memory
Boot...
