ESD5Z3V3C0S03C

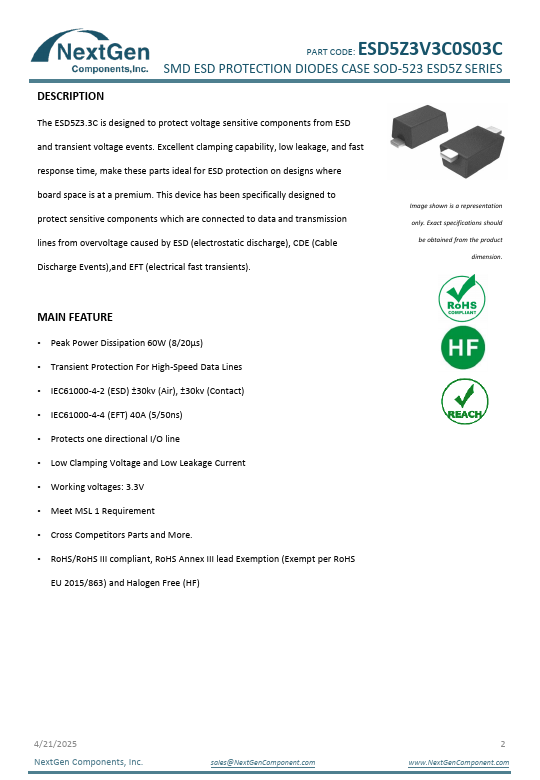

DESCRIPTION
The ESD5Z3.3C is designed to protect voltage sensitive ponents from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. This device has been specifically designed to protect sensitive ponents which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
Image shown is a representation only. Exact specifications should be obtained from the product dimension.
MAIN FEATURE
- Peak Power Dissipation 60W (8/20µs)
- Transient Protection For High-Speed Data Lines
- IEC61000-4-2 (ESD) ±30kv (Air), ±30kv (Contact)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- Protects one directional I/O line
- Low Clamping Voltage and Low Leakage Current
- Working voltages: 3.3V
- Meet MSL 1 Requirement
- Cross petitors Parts and More.
- Ro HS/Ro HS III...
