SD03000000S03W

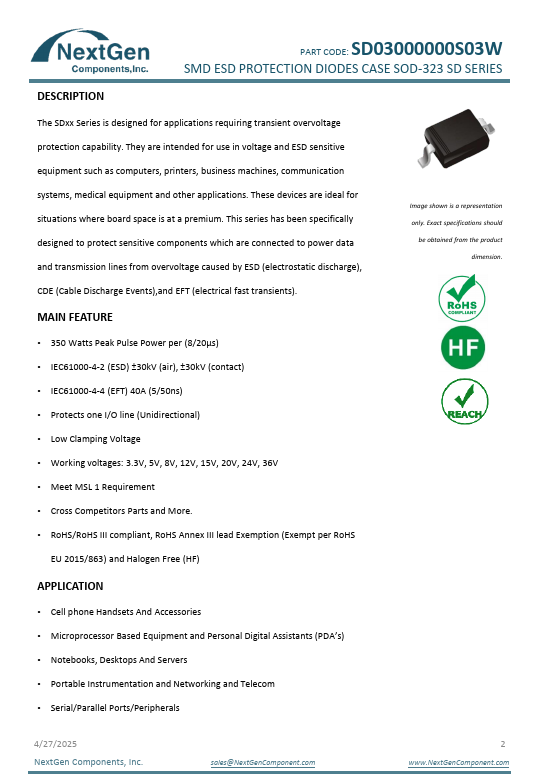

DESCRIPTION
The SDxx Series is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as puters, printers, business machines, munication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium. This series has been specifically designed to protect sensitive ponents which are connected to power data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
Image shown is a representation only. Exact specifications should be obtained from the product dimension.
MAIN FEATURE
- 350 Watts Peak Pulse Power per (8/20μs)
- IEC61000-4-2 (ESD) ±30k V (air), ±30k V (contact)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- Protects one I/O line (Unidirectional)
- Low Clamping Voltage
- Working voltages: 3.3V, 5V, 8V, 12V, 15V, 20V, 24V, 36V
- Meet MSL 1...
