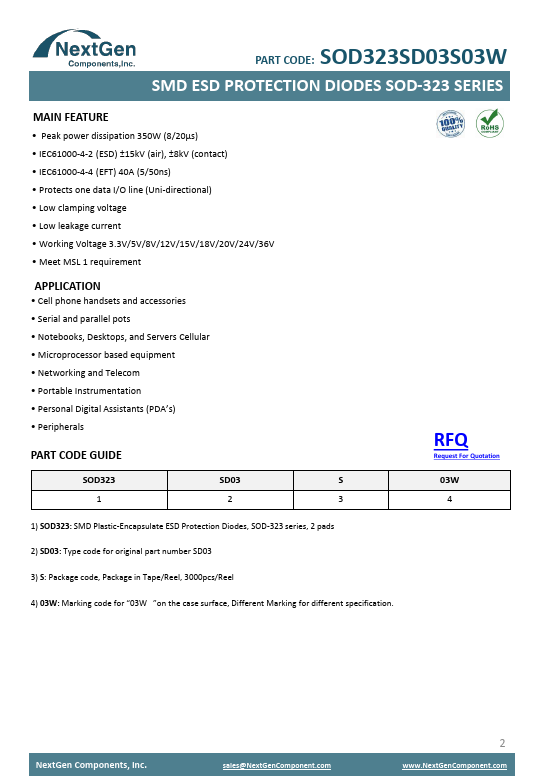

SOD323SD03S03W
FEATURE
- Peak power dissipation 350W (8/20µs)
- IEC61000-4-2 (ESD) ±15k V (air), ±8k V (contact)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- Protects one data I/O line (Uni-directional)
- Low clamping voltage
- Low leakage current
- Working Voltage 3.3V/5V/8V/12V/15V/18V/20V/24V/36V
- Meet MSL 1 requirement
APPLICATION
- Cell phone handsets and accessories
- Serial and parallel pots
- Notebooks, Desktops, and Servers Cellular
- Microprocessor based equipment
- Networking and Tele
- Portable Instrumentation
- Personal Digital Assistants (PDA’s)
- Peripherals
PART CODE GUIDE
SOD323 1
SD03
1) SOD323: SMD Plastic-Encapsulate ESD Protection Diodes, SOD-323 series, 2 pads
2) SD03: Type code for original part number SD03
3) S: Package code, Package in Tape/Reel, 3000pcs/Reel
4) 03W: Marking code for “03W ”on the case surface, Different Marking for different specification.
Request For Quotation
03W 4
