NJL5821R - Encoder

General Description

Miniature, thin package： 2.6mm x 2.5mm x 0.8mm Digital two outputs type： A,B phases Operating temperature range: -30 to +105℃ Resolution： NJL5821R 150LPI、NJL5822R 180LPI Pb free soldering re-flowing permitted： 255℃,2times Halogen free, Pb free Compliant wit

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJL5820R Rotary Detection Sensor New Japan Radio
NJL5801K DIGITAL OUTPUT PHOTO REFLECTOR New Japan Radio
NJL5161K PHOTO REFLECTOR New Japan Radio
NJL5162K PHOTO REFLECTOR New Japan Radio
NJL5163K PHOTO REFLECTOR New Japan Radio

Other Datasheets by Nisshinbo

Part Number Description
NJL5822R Encoder

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

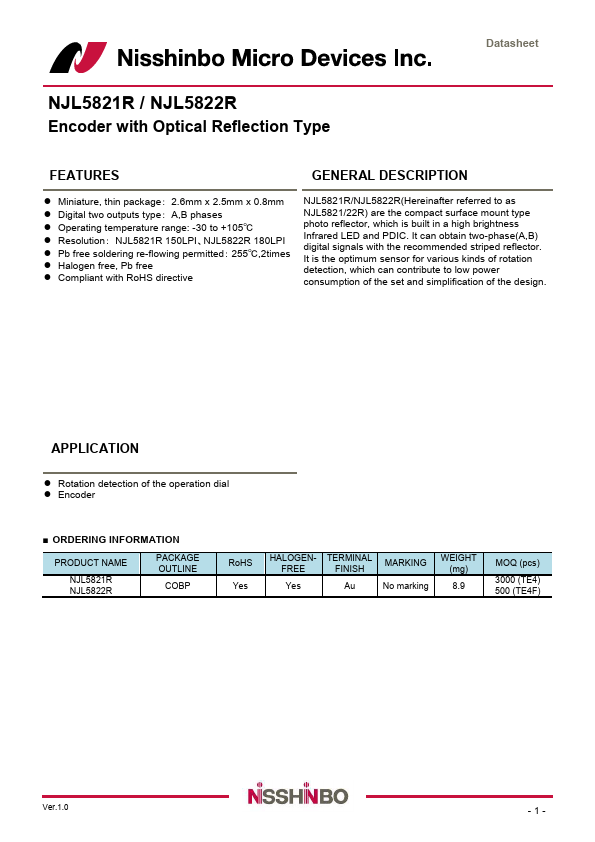

Datasheet NJL5821R / NJL5822R Encoder with Optical Reflection Type FEATURES GENERAL DESCRIPTION  Miniature, thin package： 2.6mm x 2.5mm x 0.8mm  Digital two outputs type： A,B phases  Operating temperature range: -30 to +105℃  Resolution： NJL5821R 150LPI、NJL5822R 180LPI  Pb free soldering re-flowing permitted： 255℃,2times  Halogen free, Pb free  Compliant with RoHS directive NJL5821R/NJL5822R(Hereinafter referred to as NJL5821/22R) are the compact surface mount type photo reflector, which is built in a high brightness Infrared LED and PDIC. It can obtain two-phase(A,B) digital signals with the recommended striped reflector. It is the optimum sensor for various kinds of rotation detection, which can contribute to low power consumption of the set and simplification of the design.
