NU1619 Datasheet High Integration Wireless Power Receiver/transmitter

Manufacturer: Nuvolta

Overview: NU1619 Datasheet NU1619: High Efficiency, High Integration Wireless Power Receiver/Transmitter.

Datasheet Details

Part number NU1619
Manufacturer Nuvolta
File Size 693.50 KB
Description High Integration Wireless Power Receiver/Transmitter
Datasheet NU1619-Nuvolta.pdf

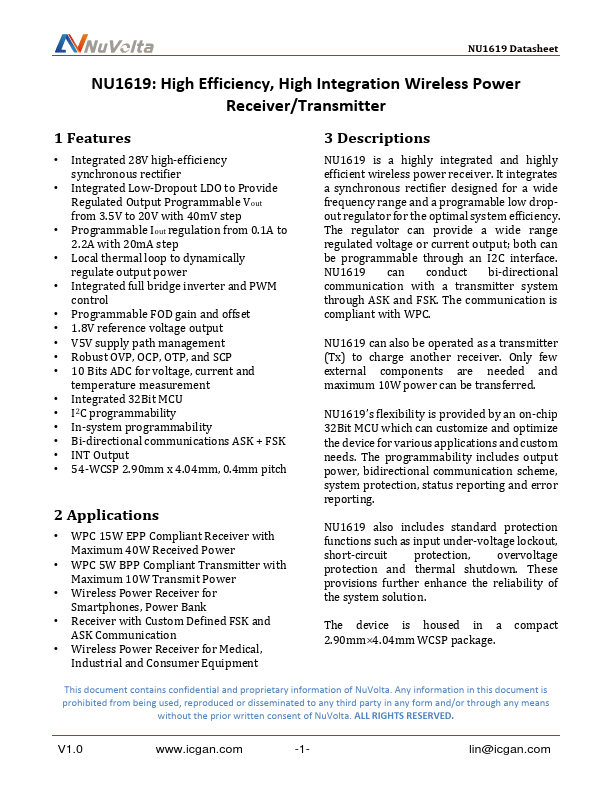

General Description

s NU1619 is a highly integrated and highly efficient wireless power receiver.

It integrates a synchronous rectifier designed for a wide frequency range and a programable low dropout regulator for the optimal system efficiency.

The regulator can provide a wide range regulated voltage or current output;

Key Features

  • Integrated 28V high-efficiency synchronous rectifier.
  • Integrated Low-Dropout LDO to Provide Regulated Output Programmable Vout from 3.5V to 20V with 40mV step.
  • Programmable Iout regulation from 0.1A to 2.2A with 20mA step.
  • Local thermal loop to dynamically regulate output power.
  • Integrated full bridge inverter and PWM control.
  • Programmable FOD gain and offset.
  • 1.8V reference voltage output.
  • V5V supply path management.
