N79E845 Overview
The instruction sets of the N79E845/844/8432 is fully patible with the standard 8052. The N79E845/844/8432 contains 16K/8K/4K bytes Application Flash EPROM (APROM) memory, 4 Kbytes Data Flash memory, and 2 Kbytes Load Flash EPROM (LDROM) memory; 256 bytes direct and indirect RAM, 256 bytes XRAM;.

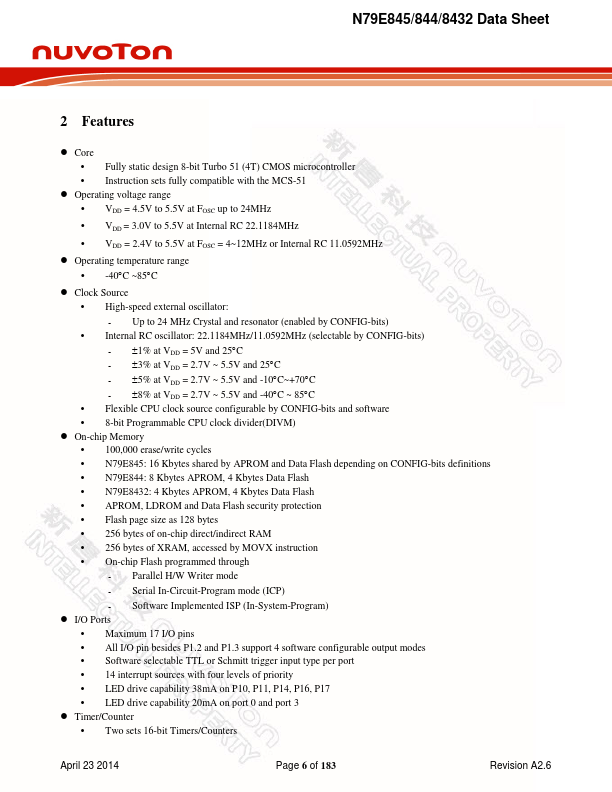

N79E845 Key Features
- Fully static design 8-bit Turbo 51 (4T) CMOS microcontroller
- Instruction sets fully patible with the MCS-51
- Operating voltage range
- VDD = 4.5V to 5.5V at FOSC up to 24MHz
- VDD = 3.0V to 5.5V at Internal RC 22.1184MHz
- VDD = 2.4V to 5.5V at FOSC = 4~12MHz or Internal RC 11.0592MHz
- Operating temperature range
- 40°C ~85°C
- Clock Source
- High-speed external oscillator
