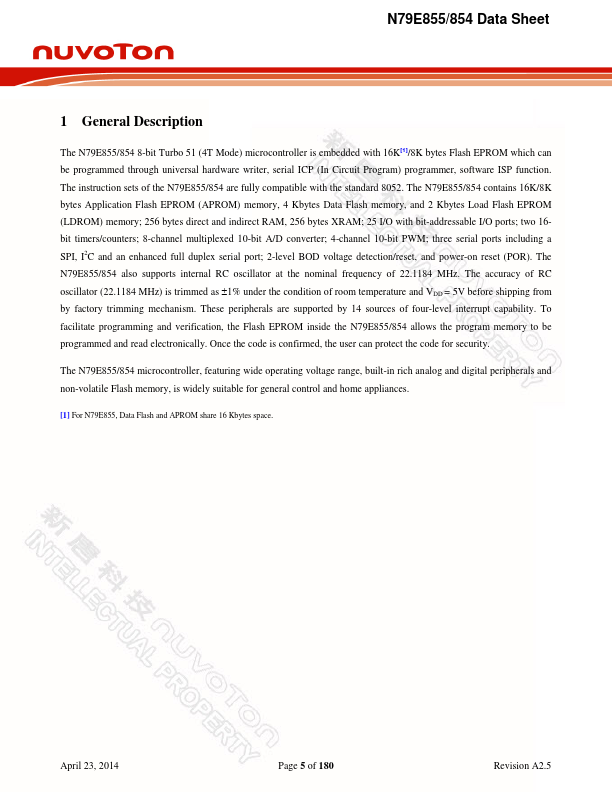

N79E855 Description
The N79E855/854 8-bit Turbo 51 (4T Mode) microcontroller is embedded with 16K[1]/8K bytes Flash EPROM which can be programmed through universal hardware writer, serial ICP (In Circuit Program) programmer, software ISP function. The instruction sets of the N79E855/854 are fully patible with the standard 8052. The N79E855/854 contains 16K/8K bytes Application Flash EPROM (APROM) memory, 4 Kbytes Data Flash memory, and...

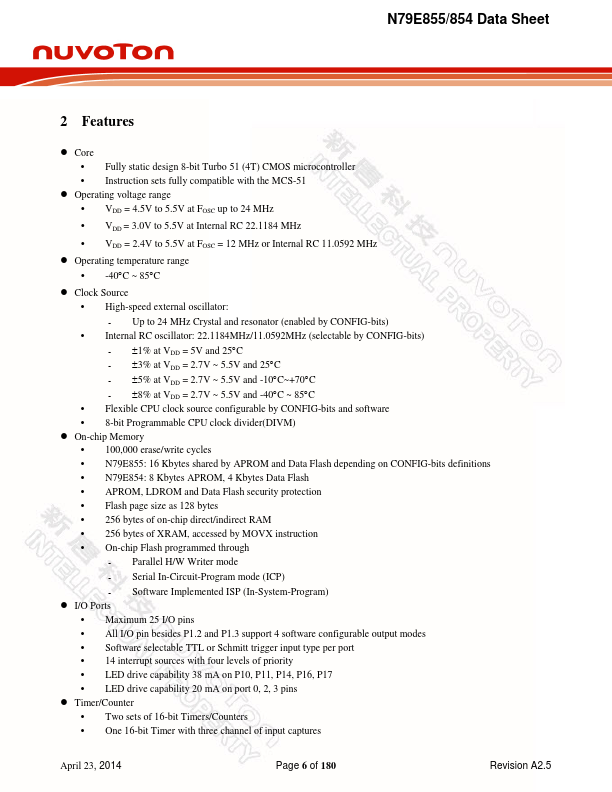

N79E855 Key Features
- Fully static design 8-bit Turbo 51 (4T) CMOS microcontroller
- Instruction sets fully patible with the MCS-51
- Operating voltage range
- VDD = 4.5V to 5.5V at FOSC up to 24 MHz
- VDD = 3.0V to 5.5V at Internal RC 22.1184 MHz
- VDD = 2.4V to 5.5V at FOSC = 12 MHz or Internal RC 11.0592 MHz
- Operating temperature range
- 40°C ~ 85°C
- Clock Source
- High-speed external oscillator
