Nuvoton Technology W78E052D

The W78E054D/W78E052D/W78E051D series is an 8-bit microcontroller which can accomm odate a wider freque ncy rang e with low po wer con sumption. The instru ction se t for the W78E054 D/ W78E052D/ W78E051D series is fully compatible with the standard 8052. The W78E054D/W78E052D/W78E051D series contains 16K/8K/4K bytes Flash EPROM programmable by hardware writer; a 256 bytes RAM; four 8-bit bi-directional (P0, P1, P2, P3) and bit-addressable I/O ports; an additional 4-bit I/O port P4; three 16-bit timer/counters; a hardware watchdog timer and a serial port.

Part No.	W78E052D
Datasheet	W78E052D Download
Manufacturer	Nuvoton Technology
Description	8-BIT MICROCONTROLLER
Buy	Stock & Price

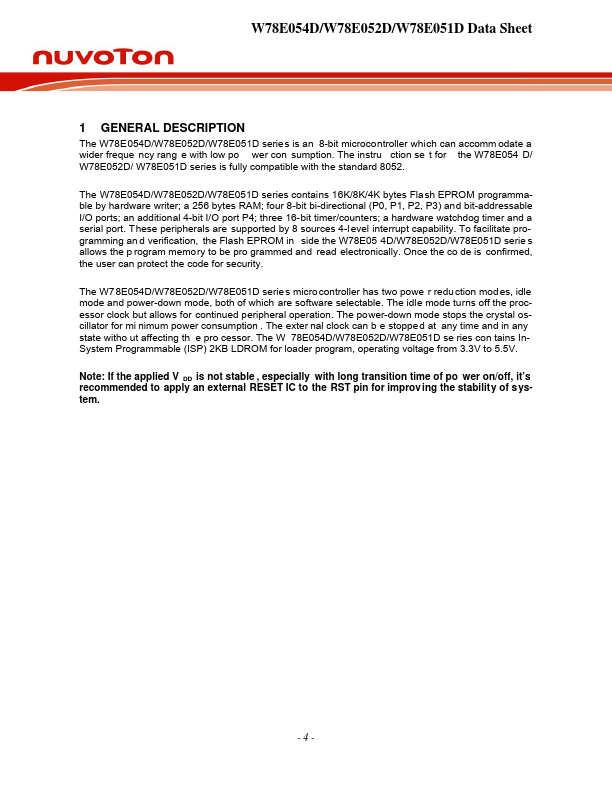

GENERAL DESCRIPTION

These peripherals are supported by 8 sources 4-l evel interrupt capability. To facilitate programming an d verification, the Flash EPROM in side the W78E05 4D/W78E052D/W78E051D serie s allows the p rogram memory to be pro grammed and read electronically. Once the co de is confirmed, the user can protect the code for security. The W7 8E054D/W78E052D/W78E051D serie s micro controller has two powe r redu ction mod es, idle mode and power-down mode, both of which are software selectable. The idle mode turns off the processor clock but allows for continued peripheral operation. The power-down mode stops the crystal oscillator for mi nimum power consumption . The exter nal clock can b e stoppe d at any time and in any state witho ut affecting th e pro cessor. The W 78E054D/W78E052D/W78E051D se ries con tains InSystem Programmable (ISP) 2KB LDROM for loader program, operating voltage from 3.3V to 5.5V. Note: If the applied V DD is not stable , especially with long transiti...
