Oki Electric Industry OD9604N
OD9604N is designed to operate at 2.488 Gbps in STM16/OC48 environments. This photo diode uses a single + 3.3-V power supply and provides a differential output signal. It is available in an 8-pin Mini-Dil package and is coupled to a single-mode fiber with a pigtail.| Part No. | OD9604N |
|---|---|
| Datasheet | OD9604N Download |
| Manufacturer | Oki Electric Industry |
| Description | Photo Diode Preamp Module |
| Buy | Stock & Price |
FEATURES
● Surface mount Mini-Dil package● Low cost
● 2.488 Gbps operation
● Peak-sensitivity wavelength: 1300 nm APPLICATION
● High-speed optical transmission modules (receiver section)
● High-speed optical receivers
● Inter-office interconnect

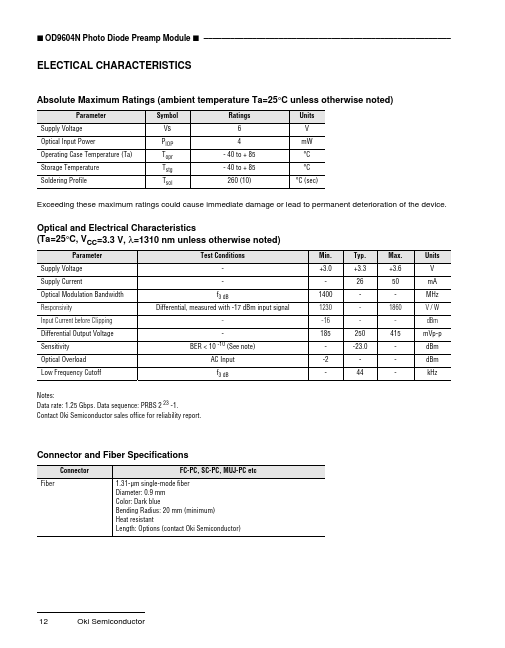

● Gigabit Ethernet Oki Semiconductor 11 s OD9604N Photo Diode Preamp Module s –––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ELECTICAL CHARACTERISTICS
ABSOLUTE MAXIMUM RATINGS
(ambient temperature Ta=25°C unless otherwise noted) Parameter Supply Voltage Optical Input Power Operating Case Temperature (Ta) Storage Temperature Soldering Profile Symbol Vs PIOP Topr Tstg Tsol Ratings 6 4 - 40 to + 85 - 40 to + 85 260 (10) Units V mW °C °C °C (sec) Exceeding these maximum ratings could cause immediate damage or lead to permanent deterioration of the device. Optical andELECTRICAL CHARACTERISTICS
(Ta=25°C, VCC=3.3 V, λ=1310 nm unless otherwise noted) Parameter Test Conditions Supply Voltage - Supply Current - Optical Modulation Bandwidth...
