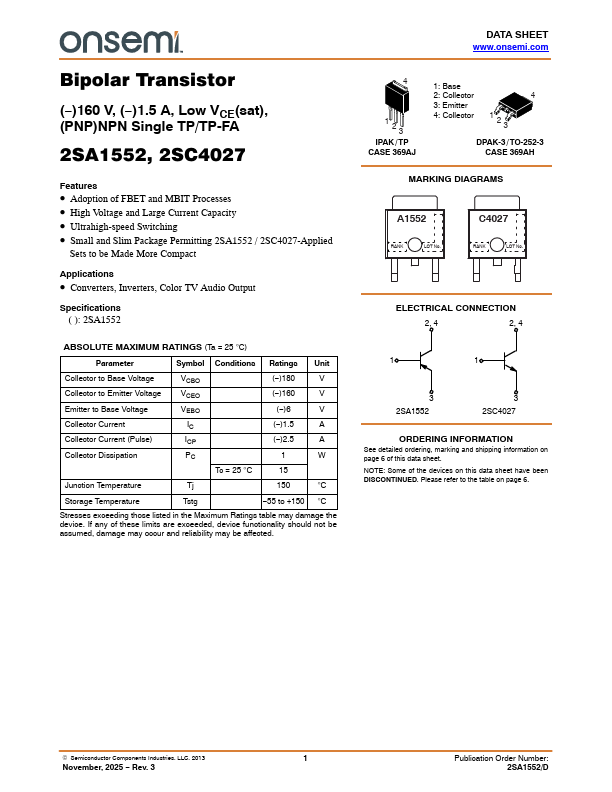

2SA1552
Features
- Adoption of FBET and MBIT Processes
- High Voltage and Large Current Capacity
- Ultrahigh-speed Switching
- Small and Slim Package Permitting 2SA1552 / 2SC4027-Applied
Sets to be Made More pact
Applications
- Converters, Inverters, Color TV Audio Output
Specifications ( ): 2SA1552
ABSOLUTE MAXIMUM RATINGS (Ta = 25 °C)
Parameter
Symbol Conditions Ratings Unit
Collector to Base Voltage
VCBO
(- )180
Collector to Emitter Voltage
VCEO
(- )160
Emitter to Base Voltage
VEBO
(- )6
Collector Current
(- )1.5
Collector Current (Pulse)
(- )2.5
Collector Dissipation
Tc = 25 °C
Junction Temperature
Tj
°C...
