2SC4027 - Bipolar Transistor

Product Overview

ON Semiconductor

Part number	2SC4027
Manufacturer	ON Semiconductor
File Size	310.44 KB
Description	Bipolar Transistor
Datasheet	2SC4027 Datasheet

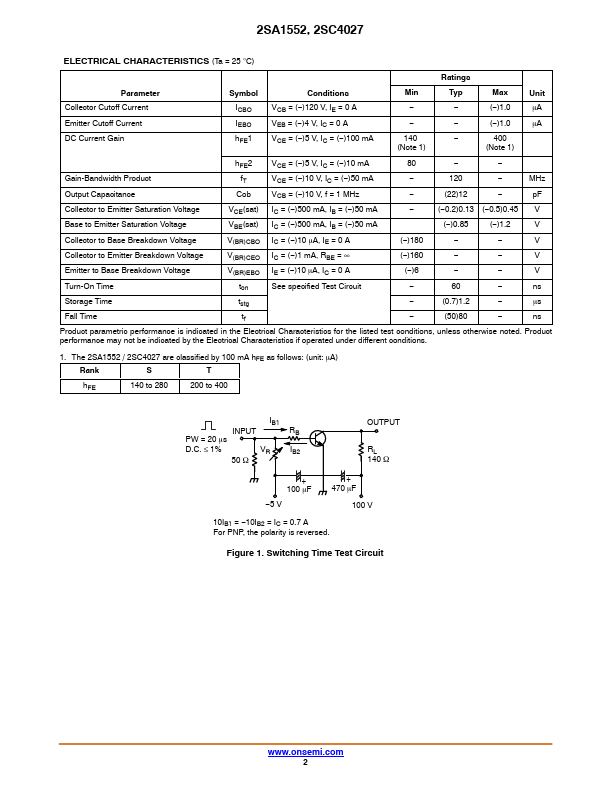

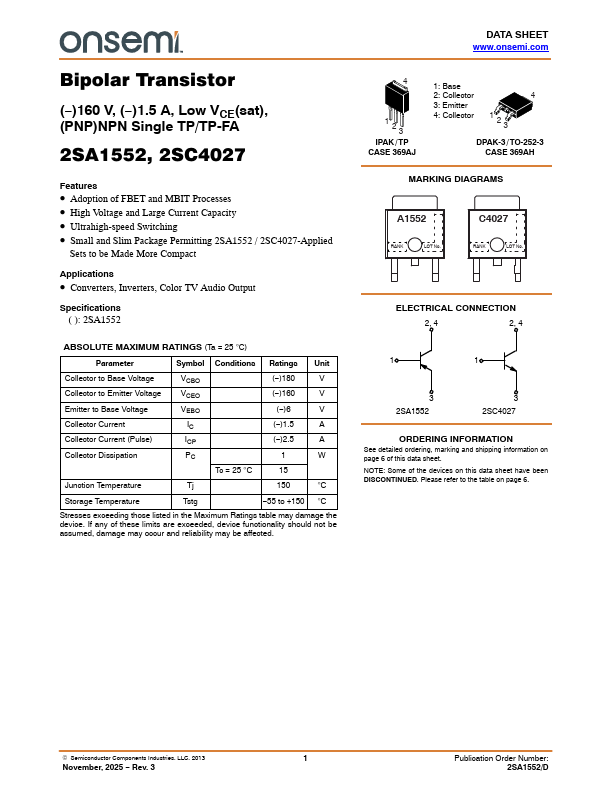

Additional preview pages of the 2SC4027 datasheet.

Adoption of FBET, MBIT processes.
High voltage and large current capacity.
Ultrahigh-speed switching.
Small and slim package permitting 2SA1552 / 2SC4027-applied sets to be made more compact Speciﬁcations ( ): 2SA1552 Absolute Maximum Ratings at Ta=25°C Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP Conditions Ratings Unit (--)180 V (--.
