2SD1803 - Bipolar Transistor

Key Features

  • High current and high fT Low collector-to-emitter saturation voltage.
  • Fast switching speed Excellent linearity of hFE Small and slim package making it easy to make 2SB1203/2SD1803-applied sets smaller Specifications ( ): 2SB1203 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP Conditions Ratings (--)6.

📥 Download Datasheet

Datasheet Details

Part number 2SD1803
Manufacturer onsemi
File Size 434.74 KB
Description Bipolar Transistor
Datasheet download datasheet 2SD1803 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD1803 NPN Transistors Kexin
2SD1803 NPN Epitaxial Planar Silicon Transistors GME
2SD1803 Silicon NPN transistor BLUE ROCKET ELECTRONICS
2SD1803 PNP/NPN Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SD1803 TO-126 Silicon NPN Power Transistor Inchange Semiconductor

Other Datasheets by onsemi

Part Number Description
2SD1801 Bipolar Transistor
2SD1802 Bipolar Transistor
2SD1805 Bipolar Transistor
2SD1815 Bipolar Transistor
2SD1816 Bipolar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

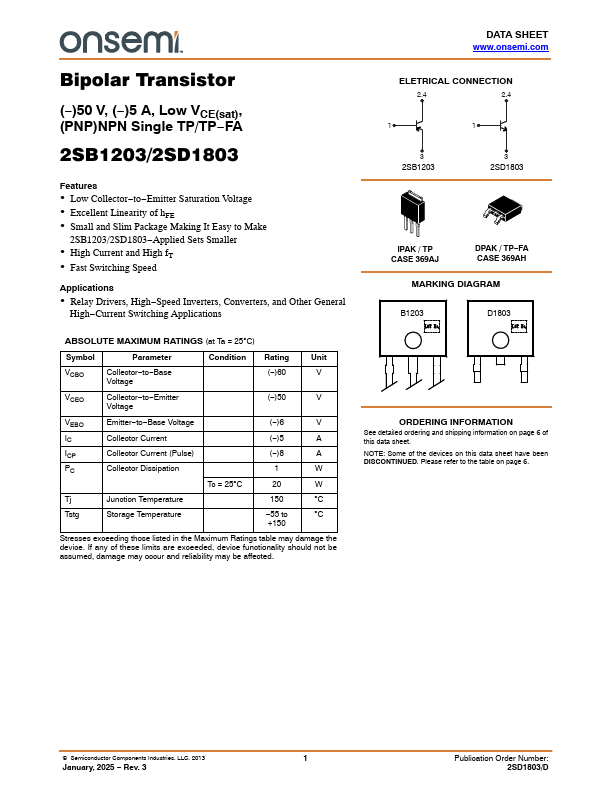

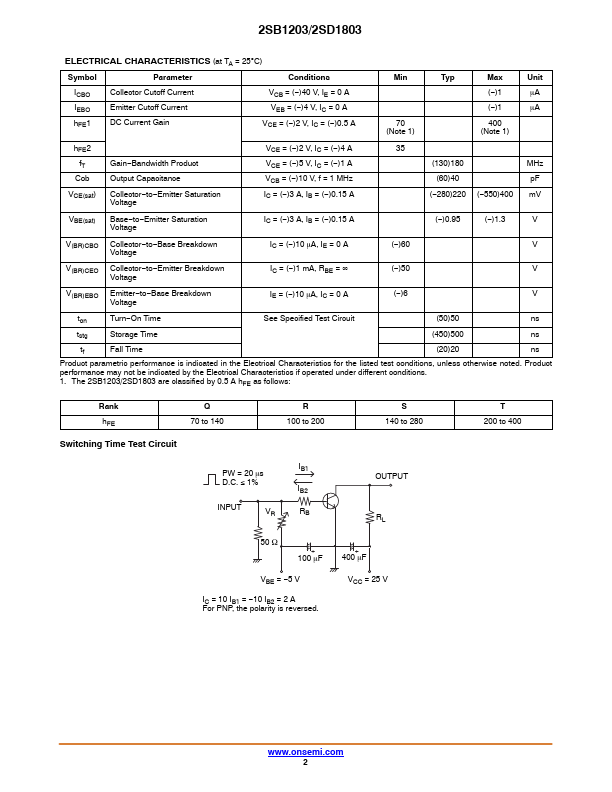

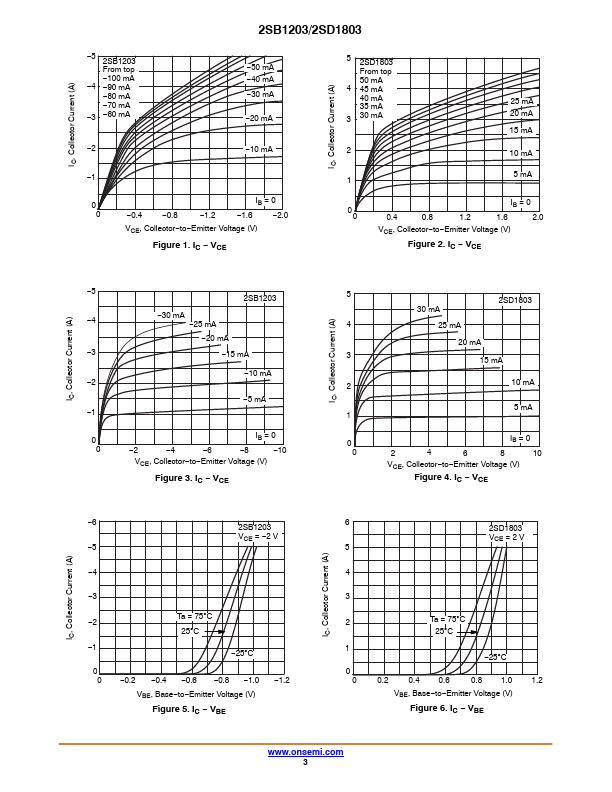

Ordering number : EN2085C 2SB1203/2SD1803 Bipolar Transistor (–)50V, (–)5A, Low VCE(sat), (PNP)NPN Single TP/TP-FA Applications • http://onsemi.com Relay drivers, high-speed inverters, converters, and other general high-current switching applications Features • • • • High current and high fT Low collector-to-emitter saturation voltage • Fast switching speed Excellent linearity of hFE Small and slim package making it easy to make 2SB1203/2SD1803-applied sets smaller Specifications ( ): 2SB1203 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP Conditions Ratings (--)60 (--)50 (--)6 (-)5 (-)8 Unit V V V A A Continued on next page.
