AR2020 - 1/1.8-inch 20-MP CMOS Digital Image Sensor

General Description

The onsemi AR2020 is a stacked 1/1.8 inch back side illuminated (BSI) CMOS active

pixel digital image sensor with a pixel array of 5120H x 3840V (5136H x 3856V including border pixels).

The AR2020 has enhanced NIR response.

chip camera functio

Key Features

  • onsemi’s breakthrough low.
  • noise CMOS imaging technology. The AR2020 sensor can generate full resolution image at up to 60 frames per second (fps) in 10.
  • bit linear mode. AR2020 can achieve 30 fps in line interleaved high dynamic range (LI.
  • HDR) and enhanced Dynamic Range (eDR) modes. Features.
  • 20 MP CMOS Sensor with Advanced 1.4 mm Pixel Stacked BSI Technology.
  • Enhanced NIR Response at 850 nm and 940 nm Wavelength.
  • LI.
  • HDR: Supports Line Interleaved T1.

📥 Download Datasheet

Datasheet Details

Part number AR2020
Manufacturer onsemi
File Size 483.51 KB
Description 1/1.8-inch 20-MP CMOS Digital Image Sensor
Datasheet download datasheet AR2020 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AR2001 Smart Handgeld Device SoC ETC
AR2003FV ACTIVE/SYNCHRONOUS RECTIFICATION CONTROLLER Diodes
AR2004 RECTIFIER DIODE Power Semiconductors
AR2004LT RECTIFIER DIODE Power Semiconductors
AR2009 RECTIFIER DIODE Power Semiconductors

Other Datasheets by onsemi

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

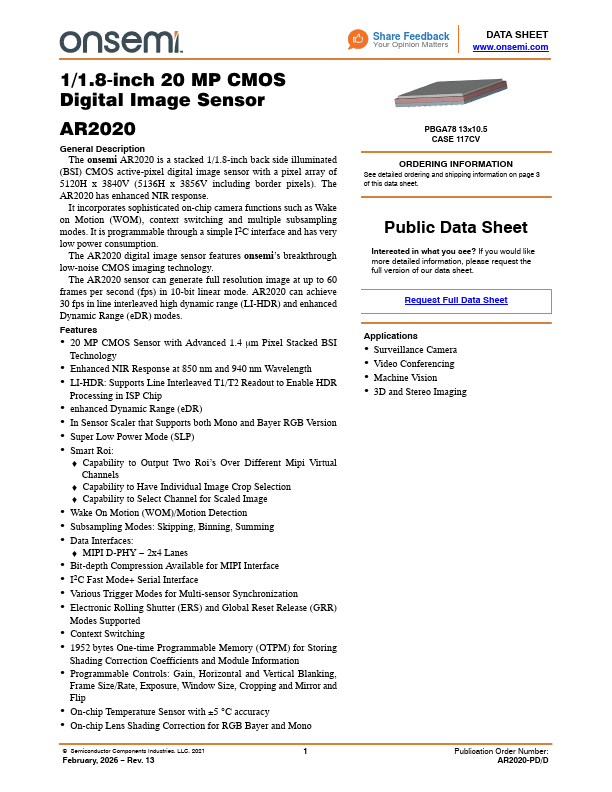

DATA SHEET www.onsemi.com 1/1.8-inch 20 MP CMOS Digital Image Sensor AR2020 General Description The onsemi AR2020 is a stacked 1/1.8−inch back side illuminated (BSI) CMOS active−pixel digital image sensor with a pixel array of 5120H x 3840V (5136H x 3856V including border pixels). The AR2020 has enhanced NIR response. It incorporates sophisticated on−chip camera functions such as Wake on Motion (WOM), context switching and multiple subsampling modes. It is programmable through a simple I2C interface and has very low power consumption. The AR2020 digital image sensor features onsemi’s breakthrough low−noise CMOS imaging technology. The AR2020 sensor can generate full resolution image at up to 60 frames per second (fps) in 10−bit linear mode.
